Briggs & Stratton 8 HP INTEK ™ I/C Model Series 202400

Email: sales@smallenginesuppliers.com

To inquire about a short block, or other parts, please use our Engine Inquiry Form

Search Our Site

Where to look for model & spec numbers

   If you are looking for a Parts Lookup System Check out this link.

Briggs & Stratton Small Engines

  • Displacement 18.6 cu. in. (305 cc)

  • Bore 3.12 in. (79 mm)

  • Stroke 2.43 in. (61 mm)

  • Oil Capacity 28 fl. oz. (0.82 L)

Briggs & Stratton 202400 Series Engine


  • Dura-Bore ™ cast iron cylinder sleeve for extended life

  • Maintenance-free Magnetron ® electronic ignition for quick, dependable starts

  • Dual-Clean ™ air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

  • Overhead valve design (OHV) for cooler operation and longer valve life

  • Buyer protection package provides two-year consumer engine warranty

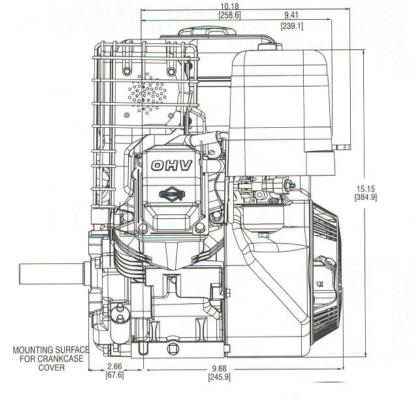

202400 Series Line Drawing
202400 Series Line Drawing
202400 Series Line Drawing mounting
202400 Series Line Drawing engines
202400 Series Line Drawing power curve
