Briggs & Stratton 6 HP VANGUARD ™ Model Series 118400

Email: sales@smallenginesuppliers.com

To inquire about a short block, or other parts, please use our Engine Inquiry Form

Search Our Site

Where to look for model & spec numbers

   If you are looking for a Parts Lookup System Check out this link.

Briggs & Stratton Small Engines

  • Displacement 11 cu. in. (181 cc)

  • Bore 2.67 in. (68 mm)

  • Stroke 1.96 in. (50 mm)

  • Oil Capacity 24 fl. oz. (0.7 L)

Briggs & Stratton 118400 Series Engine


Dura-Bore ™ cast iron cylinder sleeve for extended life

  • Float carburetor for consistent easy starting

  • Maintenance-free Magnetron ® electronic ignition for quick, dependable starts

  • Dual-Clean ™ air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

  • Oil Gard ® low oil engine shutdown device

  • Overhead valve design (OHV) for cooler operation and longer valve life

  • Buyer protection package provides two-year commercial engine warranty

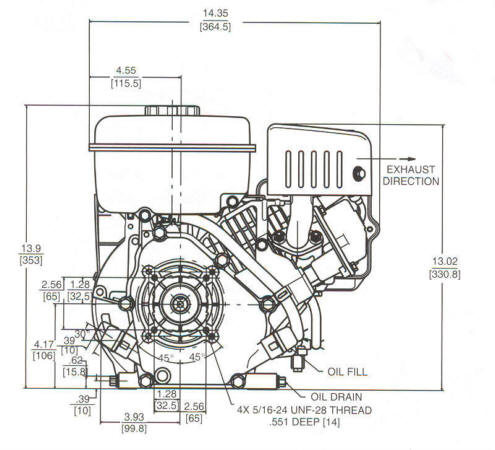

118400 Series Line Drawing
118400 Series Line Drawing mounting
118400 Series Line Drawing
118400 Series Line Drawing engines

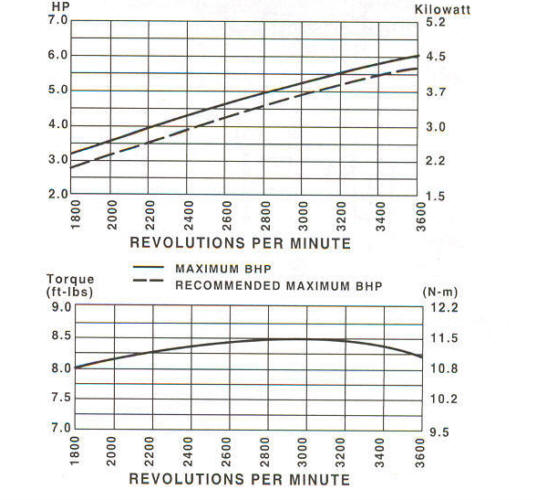

118400 Series Line Drawing power curve
