Briggs & Stratton 16 HP ELS ™ Model Series 28CH00

Email: sales@smallenginesuppliers.com

To inquire about a short block, or other parts, please use our Engine Inquiry Form

Search Our Site

Where to look for model & spec numbers

   If you are looking for a Parts Lookup System Check out this link.

Briggs & Stratton Small Engines

  • Displacement 28.4 cu. in. (465 cc)

  • Bore 3.44 in. (87.7 mm)

  • Stroke 3.06 in. (77.7 mm)

  • Oil Capacity 56 fl. oz. (1.7 L)

Briggs & Stratton 28CH00 Series Engine


  • Extended Life Series Dura-Bore ™ cast iron cylinder sleeve for extended life

  • Float carburetor for consistent easy starting

  • Maintenance-free Magnetron ® electronic ignition for quick, dependable starts

  • Premium air cleaner has three times the cleaning capacity for superior protectionOverhead valve design (OHV) for cooler operation and longer valve life

  • Buyer protection package provides two-year consumer engine warrantyPremium oil filter

  • Platinum spark plugs for extended life

  • Patented linear balancing system provides smoother performance

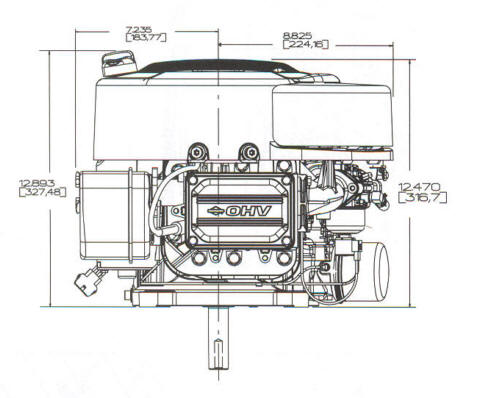

28CH00 Series Line Drawing mounting
28CH00 Series Line Drawing
28CH00 Series Line Drawing
28CH00 Series Line Drawing engines
28CH00 Series Line Drawing power curve
