Kohler Horizontal Shaft Small Engines

Unless otherwise specified we sell only brand new engines & parts with full factory warranty.

For more than 80 years, KOHLER engines have met, and in many cases exceeded, the demands of the utility engine market. This commitment to excellence continues to make KOHLER engines the benchmark for reliability, performance and service today. KOHLER Engines continues to set performance benchmarks for easy starting, reliability, long-life, low maintenance and an environmentally friendly design. Our vast product line is preferred by major manufacturers to power everything from heavy-duty concrete saws to precision-cutting greensmowers, and from industrial welders to your neighbor's lawn and garden tractor. The engines listed are our economy Kohler replacement engines. We can get all popular new Kohler engines and Short Blocks as well. Please email us if you need a different engine.

Read about Horse Power Ratings on Small Engines

Kohler SH270-3156 6.5 HP Courage

Kohler SH270-3156 6.5 HP Courage
Supersedes SH265-0011, SH265-3011
3/4" x 2.42" Crankshaft with 3/16" keyway
Drilled & Tapped 5/16 - 24
Recoil Start
Cast Iron Cylinder Bore
Dual ball bearing (PTO & Flywheel)
Uses include Tampers, Mixers, Vibratory Rollers, Tillers, Log Splitters, Concrete Saws
Large muffler for quiet operation
Dual Ball Bearing: Extends engine life & eases starting
Dual Element Air Filter for cleaner operation & longer engine life
Low oil alert system
Large 3.6 Liter fuel tank
Variable Speed 2000 +/- 150 to 3800 RPM +/- 100 RPM
NO SALES TO CALIFORNIA

Our Price $359.99
Retail Price $466.39

Kohler CH245-3152 4.5 HP Command Pro

Kohler Command Pro CH245-3152 4.5 HP Engine
Supersedes CH245-3011
3/4" x 2.42" crankshaft with 3/16" keyway, tapped 5/16-24
Recoil Start
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Engine mounted Throttle & Choke Controls. Remote throttle ready
Oil Sentry™ Switch Installed (NO LIGHT)
Dual Ball Bearings
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler with Heat Shield & Spark Arrestor
Power or repower your equipment without expensive modifications

Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block, 4.5 HP
Displacement: 177 cc
Bore in (mm): 2.7 (68)
Stroke in (mm): 1.9 (49)
Gross Torque: 9.8 ft lbs
Compression Ratio: 8.5:1
Oil Capacity US qts: 0.63
Lubrication: Splash
Engine Type: Commercial

This engine powers the following equipment:
Air Compressor, Edger, Go-Kart, Pressure Washer, Tiller, Pump, Log Splitter, Ground Pounder, Greens Mower, Concrete Screed, Chipper, Concrete Trowel, Aerator

Shipping weight 38 lbs
NO SALES TO CALIFORNIA

Our Price $419.99
Retail Price $549.52

Kohler CH245-3021 4.5 HP Command Pro

Kohler Command Pro CH245-3021 4.5 HP Engine
3/4" x 2.42" crankshaft with 3/16" keyway, tapped 5/16-24
Recoil Start and 12 Volt Electric Start with 3 amp alternator
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Engine mounted Throttle & Choke Controls. Remote throttle ready
Oil Sentry™ Switch Installed (NO LIGHT)
Dual Ball Bearings
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler with Heat Shield & Spark Arrestor
Power or repower your equipment without expensive modifications

Shipping weight 43 lbs
NO SALES TO CALIFORNIA

Our Price $549.99
Retail Price $724.65

Kohler CH245-3031 4.5 HP Command Pro

Kohler Command Pro CH245-3031 4.5 HP Engine
3/4" x 2.42" crankshaft with 3/16" keyway, tapped 5/16-24
Recoil Start and 12 Volt Electric Start with 10 amp alternator
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Engine mounted Throttle & Choke Controls. Remote throttle ready
Oil Sentry™ Switch Installed (NO LIGHT)
Dual Ball Bearings
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler with Heat Shield & Spark Arrestor
Power or repower your equipment without expensive modifications

Shipping weight 43 lbs
NO SALES TO CALIFORNIA

Our Price $589.99
Retail Price $783.06

Kohler CH255-3021 5.5 HP Command Pro

Kohler Command Pro CH255-3021 5.5 HP Engine
3/4" x 2.42" crankshaft with 3/16" keyway, tapped 5/16-24
Recoil Start and 12 Volt Electric Start with 3 amp alternator
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Engine mounted Throttle & Choke Controls. Remote throttle ready
Oil Sentry™ Switch Installed (NO LIGHT)
Dual Ball Bearings
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler with Heat Shield & Spark Arrestor
Power or repower your equipment without expensive modifications

Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block, 5.5 HP
Displacement: 177 cc
Bore in (mm): 2.7 (68)
Stroke in (mm): 1.9 (49)
Gross Torque: 11.2 ft lbs
Compression Ratio: 8.5:1
Oil Capacity US qts: 0.63
Lubrication: Splash
Engine Type: Commercial

Shipping weight 43 lbs
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $569.99
Retail Price $759.02

This item is Currently Unavailable

Kohler CH255-3031 5.5 HP Command Pro

Kohler Command Pro CH255-3031 5.5 HP Engine
3/4" x 2.42" crankshaft with 3/16" keyway, tapped 5/16-24
Recoil Start and 12 Volt Electric Start with 10 amp alternator
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Engine mounted Throttle & Choke Controls. Remote throttle ready
Oil Sentry™ Switch Installed (NO LIGHT)
Dual Ball Bearings
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler with Heat Shield & Spark Arrestor
Power or repower your equipment without expensive modifications

Shipping weight 43 lbs
NO SALES TO CALIFORNIA

Our Price $619.99
Retail Price $817.38

Kohler CH270-3155 7 HP Command Pro

Kohler CH270-3155 7 HP Command Pro
Supersedes CH270-3014, CH270-0014
Threaded Pump Shaft
Recoil Start
Cast Iron Cylinder Bore
Large muffler for quiet operation
Dual Ball Bearing: Extends engine life & eases starting
Heavy Duty Cyclonic Air Filter for cleaner operation & longer engine life
Low oil alert system
Large 1 gallon fuel tank
Peak Torque 9.4 ft-lbs at 2600 RPM
3 year factory warranty
Line Drawings for CH270
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $479.99
Retail Price $635.87

This item is Currently Unavailable

Kohler CH255-3152 5.5 HP Command Pro

Kohler Command Pro CH255-3152 5.5 HP Engine
Supersedes CH255-3011
3/4" x 2.42" crankshaft with 3/16" keyway, tapped 5/16-24
Recoil Start
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Engine mounted Throttle & Choke Controls. Remote throttle ready
Oil Sentry™ Switch Installed (NO LIGHT)
Dual Ball Bearings
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler with Heat Shield & Spark Arrestor
Power or repower your equipment without expensive modifications

Shipping weight 43 lbs
NO SALES TO CALIFORNIA

Our Price $439.99
Retail Price $583.85

Kohler CH270-3152 7 HP Command Pro

Kohler CH270-3152 7 HP Command Pro
Supersedes CH270-0011, CH270-3011, CH270-3160
3/4" x 2.44" Crankshaft with 3/16" keyway
Drilled & Tapped 5/16 - 24
Recoil Start
Cast Iron Cylinder Bore
Uses include Tampers, Mixers, Vibratory Rollers, Tillers, Log Splitters, Concrete Saws
Can be converted for use on Snow Blowers by raising & turning the air filter to draw air from the muffler
Large muffler for quiet operation
Dual Ball Bearing: Extends engine life & eases starting
Heavy Duty Cyclonic Air Filter for cleaner operation & longer engine life
Low oil alert system
Large 1 gallon fuel tank
Peak Torque 9.4 ft-lbs at 2600 RPM
Can be converted to remote throttle with kit 17 755 04-S
3 year factory warranty

Line Drawings for CH270
If you need remote throttle order throttle conversion kit 17 755 04-S
https://www.smallenginesuppliers.com/shop/html/pages/products/Kohler_Fuel_Pumps15570.html
NO SALES TO CALIFORNIA

Our Price $479.99
Retail Price $635.87

Kohler CH255-3039 5.5 HP Command Pro with 6:1 Gear Reduction

Kohler CH255-3039 5.5 HP Command Pro with 6:1 Gear Reduction
3/4" x 2.00" crankshaft
Recoil + 12V Electric Start
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner (Aluminum Block)
Large-capacity (3.1 liter) Metal fuel tank with strainer means more time working, less time filling
Dual Ball Bearings
Indexable Recoil Starter + 12 Volt Electric Start with 10 amp Alternator
Large Capacity Muffler with Heat Shield & Spark Arrestor
Displacement: 177 cc
Bore in (mm): 2.7 (68)
Stroke in (mm): 1.9 (49)
Gross Torque: 11.2 ft lbs
Compression Ratio: 8.5:1
Oil Capacity US qts: 0.63
Lubrication: Splash
Engine Type: Commercial
Shipping weight 60 lbs
Click the image below for a larger view of the back of the engine
NO SALES TO CALIFORNIA

Our Price $769.99
Retail Price $1019.99

Kohler CH270-3021 7 HP Command Pro

Kohler CH270-3021 7 HP Command Pro
3/4" x 2-3/8" Crankshaft with 3/16" keyway
Drilled & Tapped 5/16 - 24
Recoil Start & Electric Start with 3 amp alternator
Cast Iron Cylinder Bore
Uses include Tampers, Mixers, Vibratory Rollers, Tillers, Log Splitters, Concrete Saws
Can be converted for use on Snow Blowers by raising & turning the air filter to draw air from the muffler
Large muffler for quiet operation
Dual Ball Bearing: Extends engine life & eases starting
Heavy Duty Cyclonic Air Filter for cleaner operation & longer engine life
Low oil alert system
Large 1 gallon fuel tank
Peak Torque 9.4 ft-lbs at 2600 RPM
Can be converted to remote throttle with kit 17 755 04-S

Line Drawings for CH270
NO SALES TO CALIFORNIA

Our Price $679.99
Retail Price $893.13

Kohler CH270-3031 7 HP Command Pro

Kohler CH270-3031 7 HP Command Pro
3/4" x 2-3/8" Crankshaft with 3/16" keyway
Drilled & Tapped 5/16 - 24
Recoil Start & Electric Start with 10 amp alternator
Cast Iron Cylinder Bore
Uses include Tampers, Mixers, Vibratory Rollers, Tillers, Log Splitters, Concrete Saws
Can be converted for use on Snow Blowers by raising & turning the air filter to draw air from the muffler
Large muffler for quiet operation
Dual Ball Bearing: Extends engine life & eases starting
Heavy Duty Cyclonic Air Filter for cleaner operation & longer engine life
Low oil alert system
Large 1 gallon fuel tank
Peak Torque 9.4 ft-lbs at 2600 RPM
3 year factory warranty
Can be converted to remote throttle with kit 17 755 04-S

Line Drawings for CH270
NO SALES TO CALIFORNIA

Our Price $719.99
Retail Price $952.46

Kohler CH270-3132 7 HP Command Pro

Kohler CH270-3132 7 HP Command Pro
3/4" x 2-7/16" Crankshaft with 3/16" keyway
Drilled & Tapped 5/16 - 24
Recoil Start
Cast Iron Cylinder Bore
Uses include Tampers, Mixers, Vibratory Rollers, Tillers, Log Splitters, Concrete Saws
Large muffler for quiet operation
Dual Ball Bearing: Extends engine life & eases starting
Heavy Duty Cyclonic Air Filter for cleaner operation & longer engine life
Large 1 gallon fuel tank
3 year factory warranty
Can be converted to remote throttle with kit 17 755 04-S
Shipping Weight 63 lbs (Dimensional Weight)
NO SALES TO CALIFORNIA

Our Price $279.99
Retail Price $518.14

Kohler KD440-2001B Diesel 8.5 HP

Kohler Diesel KD440-2001B 8.5 HP Diesel
Supersedes KD420-2001B
1" crankshaft
12 Volt Electric Start with 20 amp Alternator
Has muffler with guard
Dry type air cleaner
49 STATE ENGINE - CAN NOT BE SOLD IN CALIFORNIA
Shipping weight 149 lbs
KD400 Spec Sheet
Owners Manual
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
This 9.8 hp diesel engine delivers the Performance Engineering standards you've come to expect from Kohler. The direct injection system produces increased power and lower fuel consumption. Full pressure lubrication offers superior cooling and performance combined with full-flow oil filters for longer engine and component life. Air cooling, horizontal shaft, single-cylinder design, and a cast iron liner set the standard for power and engineering excellence all backed with a 3-year full warranty.

Our Price $4199.99
Retail Price $5049.99

Kohler KD440-2101C Diesel 8.5 HP

Kohler Diesel KD440-2101C 8.5 HP Diesel
Supersedes KD420-2101B, KD440-2101B
1" crankshaft
12 Volt Electric Start with 20 amp Alternator
Has muffler with guard
Dry type air cleaner
Has glow plugs
49 STATE ENGINE - CAN NOT BE SOLD IN CALIFORNIA
Shipping weight 149 lbs
KD400 Spec Sheet
Owners Manual
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
This 9.8 hp diesel engine delivers the Performance Engineering standards you've come to expect from Kohler. The direct injection system produces increased power and lower fuel consumption. Full pressure lubrication offers superior cooling and performance combined with full-flow oil filters for longer engine and component life. Air cooling, horizontal shaft, single-cylinder design, and a cast iron liner set the standard for power and engineering excellence all backed with a 3-year full warranty.

Our Price $4299.99
Retail Price $5199.99

Kohler CH395-3149 9.5 HP Command Pro

CH395-3149 9.5 HP Command Pro Engine
Supersedes CH395-3011, CH395-3159
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter Recoil Start Only
Crankshaft - 1" x 3.49" (25.4 mm x 88.61 mm), Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 85 lbs
NO SALES TO CALIFORNIA

Our Price $689.99
Retail Price $911.86

Kohler CH395-3155 9.5 HP Command Pro

CH395-3155 9.5 HP Command Pro
Supersedes CH395-3102

Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter Recoil Start Only
Crankshaft - 1" x 3.49" (25.4 mm x 88.61 mm), Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Remote Throttle
Shipping weight = 85 lbs
NO SALES TO CALIFORNIA

Our Price $679.99
Retail Price $891.15

Kohler CH395-3152 9.5 HP Command Pro

CH395-3016 9.5 HP Command Pro GENERATOR SHAFT (TAPERED SHAFT)
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter (Recoil Start Only)
Crankshaft - Generator Tapered Crankshaft (See image below)
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 85 lbs
NO SALES TO CALIFORNIA

Our Price $689.99
Retail Price $911.86

Kohler CH395-3021 9.5 HP Command Pro

CH395-3021 9.5 HP Command Pro
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter & Electric Starter with 3 amp alternator
Crankshaft - 1" x 3.49" (25.4 mm x 88.61 mm), Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 88 lbs
NO SALES TO CALIFORNIA

Our Price $889.99
Retail Price $1173.91

Kohler CH395-3031 9.5 HP Command Pro

CH395-3031 9.5 HP Command Pro
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter & Electric Starter with 10 amp alternator
Crankshaft - 1" x 3.49" (25.4 mm x 88.61 mm), Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 88 lbs
NO SALES TO CALIFORNIA

Our Price $929.99
Retail Price $1232.14

Kohler CH395-3041 9.5 HP Command Pro

CH395-3041 9.5 HP Command Pro

Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter & Electric starter with 18 amp alternator
Crankshaft - 1" x 3.49" (25.4 mm x 88.61 mm), Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 88 lbs
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $979.99
Retail Price $1290.35

This item is Currently Unavailable

Kohler CH440-3302 14 HP Command Pro

CH440-3302 14 HP Command Pro
Supersedes CH440-3149, CH440-3011
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter (Recoil Start Only)
Crankshaft - 1.0" (25.4 mm) Diameter x 3.49" (88.61 mm) PTO Length, Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 100 lbs
NO SALES TO CALIFORNIA

Our Price $789.99
Retail Price $1051.12

Kohler CH440-3275 14 HP Command Pro

CH440-3275 14 HP Command Pro
Standard Features:
Supersedes CH440-3031
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter & Electric start with 10 amp alternator
Crankshaft - 1.0" (25.4 mm) Diameter x 3.49" (88.61 mm) PTO Length, Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 100 lbs
NO SALES TO CALIFORNIA

Our Price $1079.99
Retail Price $1427.82

Kohler CH440-3280 14 HP Command Pro

CH440-3280 14 HP Command Pro
Supersedes CH440-3041
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter & Electric start with 18 amp alternator
Crankshaft - 1.0" (25.4 mm) Diameter x 3.49" (88.61 mm) PTO Length, Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 100 lbs
NO SALES TO CALIFORNIA

Our Price $1119.99
Retail Price $1484.94

Kohler CH440-3270 14 HP Command Pro

CH440-3270 14 HP Command Pro
Supersedes CH440-3113, CH440-3021
Standard Features:
Overhead Valve Design
Electronic Ignition
Quad-Clean™ 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
6.5 L Metal Tank w/Strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Oil Sentry™ Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
12V Electric Start with 3 amp Stator & Indexable Recoil Starter
Crankshaft - 1.0" (25.4 mm) Diameter x 3.49" (88.61 mm) PTO Length, Tapped 7/16-20 UNF
PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep and 5" (127 mm)Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual - Quad-language manual (English, Spanish, French, Chinese)
50 State Engine
Color - Black with Cast Aluminum
3 Year Warranty
Standard Features Plus:
Variable speed, RFI Compliant, Retractable Start
Manual Throttle
Shipping weight = 115 lbs
NO SALES TO CALIFORNIA

Our Price $1029.99
Retail Price $1370.71

Kohler PA-CH680-3176 22.5 HP Husqvarna

Kohler CH680-3176 22.5 HP E3 Husqvarna Construction
Supersedes CH23S-76625, CH680-3032 23 HP, CH680-3083
Uses crankshaft 24 014 02-S
1-1/8" x 4" - Tapped 7/16-20
Electric Start
15 amp Stator
Valve Cover Fuel Pump
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2629.99
Retail Price $3035.01

This item is Currently Unavailable

Kohler CH620-3161 19 HP CH18S BASIC WITH PANEL SPLINE

Kohler CH620-3161
Supersedes CH620-3108, CH18S-62506 18 HP CH18S BASIC WITH PANEL SPLINE, CH620-3008
Uses Crankshaft 24 014 16-S - Splined Shaft (9 Splines)
Electric Start
15 amp Stator
No Muffler (Transfer Existing)
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Click image below for bigger view of the crankshaft

Our Price $2069.99
Retail Price $2513.89

Kohler ECH630-3007 19 HP EFI Basic

Kohler ECH630-3007 19 HP EFI Basic
1-1/8" x 4" Crankshaft, with 1/4" Keyway, Drilled & Tapped 7/16-20
NOTE: Picture is representative
Standard Air Cleaner
Solenoid Shift Electric Starter with 15 amp Alternator
Has Oil Pump
Has Mechanical (Valve Cover) Fuel Pump
No Muffler / No Tank

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Full three year commercial factory warranty
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1999.99
Retail Price $2938.53

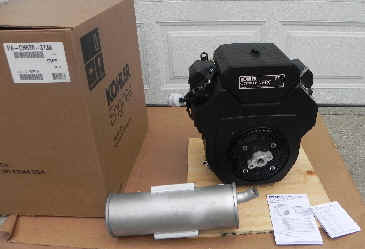

Kohler CH620-3149 19 HP E3 MORIDGE - ZTR

Kohler CH620-3149 19 HP E3 MORIDGE - ZTR
Supersedes CH620-3130, CH620-3080, CH18S-62621 MORIDGE - ZTR
1-1/8" x 3-11/32" Crankshaft With 1/4" Keyway - Tapped 7/16-20 (24 014 351-S aka 24014351S)
12 Volt Electric Starter
15 Amp Alternator
Uses 24 522 155 Shortblock
Cast Iron Cylinder Sleeves
38 cu. In. Displacement
3.03 in Bore
2.64 in Stroke
32.8 lbs. ft. Peak Torque
8.5:1 Compression Ratio
2.0 qt. Oil Capacity
Full Pressure w/ full-flow filter lubrication
Includes Muffler 24 786 23-S aka 2478623S
Dimensions: 13.8L x 17.7W x 19.0H
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1799.99
Retail Price $2113.11

Kohler CH640-3210 E3 Charles Machine SK350

CH640-3210 20.5 HP E3 Charles Machine Ditch Witch SK350 Trencher
Supersedes CH641-3014, CH640-3059, CH20-64720
HD Air Cleaner
Crankshaft 24 014 413-S (24014413S) - 9 Tooth Spline
Pulse Pump
12 Volt Electric Start with 15 amp Alternator
Has Front Shaft 24 144 16-S (2414416S)
Has Oil Filter & Oil Cooler 54 755 21-S (5475521S)
No Muffler (Transfer existing)
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is No Longer Available (NLA) and there is no substitute for it.

Our Price $2689.99
Retail Price $3181.91

This item is Currently Unavailable

Kohler CH640-3165 20.5 HP Gardner Morbark

Kohler CH640-3165 Command Twin 20.5 HP Gardner - Morbark
Uses Crankshaft 24 014 411-S - 11 Tooth Internally Splined Shaft
Solenoid Shift Electric Starter
15/20 amp Stator
Heavy Duty Air Cleaner
Includes Muffler Kit 24 786 06-S (2478606S) and Muffler Guard
NOTE: Picture is of a similar engine
Shipping Weight = 130 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2739.99
Retail Price $3038.01

This item is Currently Unavailable

Kohler CH640-3164 20.5 HP E3 Exmark Navigator

Kohler CH640-3164 20.5 HP E3 Exmark Navigator
Supersedes PA-CH640-3080, CH641-3015, CH640-3018
Compares VERY WELL to CH20-64759, CH20-64739
Twin Cylinder, Horizontal Shaft
Cast Iron Sleeve
Cylinder Head Style: OHV
Uses 24 014 114-S Crankshaft
Front Stub Shaft 24 144 51-S aka 2414451S
12 Volt Electric Starter with 15 Amp Stator
Oil Filter
Heavy Duty Remote Air Cleaner
No muffler
No fuel tank
Pulse Fuel Pump
Controls: Remote
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2619.99
Retail Price $3038.01

Kohler CH620-3133 19 HP E3 WALKER - ZTR

Kohler CH620-3133 19 HP CH18S WALKER - ZTR
Supersedes Kohler 18 HP CH18S-62638 Twin Cylinder, CH621-3013
Cast Iron Sleeve
12 Volt Electric Starter
15 Amp Stator
Oil Filter (Oil Pump)
Heavy Duty Remote Canister Air Cleaner (Air Cleaner NOT Included)
Has Fuel Pump
Remote Controls
Used on Walker ZTR
Flywheel Mounted Stub Shaft (2414447-S), 5.98" Overall Length, 2.36" Useable Length, 1" Diameter, 1/4" Keyway, Drilled & Tapped: 7/16-20 UNF
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2229.99
Retail Price $2604.16

This item is Currently Unavailable

Kohler CH620-3129 fka CH18S-62642 Command Series

CH620-3129 Command Series 19 HP
Applications: Moridge - ZTR
Supersedes CH620-3050 fka CH18S-62642
1" x 3" with full 1/4" keyway. Tapped 3/8-24 Crankshaft
Air Cleaner: Dual Element
Includes Muffler: 24 786 23-S aka 2478623SS
Shipping Weight: 120 lbs
Starter: Electric
Comments: If you're replacing a TH series engine with this you need to buy a conversion kit from Grasshopper to complete installation
Replaces TH18-54515 on Grasshopper with kit from Grasshopper
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2169.99
Retail Price $2515.18

Kohler CH620-3193 19 HP Command Twin

CH620-3193 19 HP Command Twin
Supersedes CH18S-62502 18 HP, CH620-3005, CH620-3104
1" x 3" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: CH18S Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1899.99
Retail Price $2298.46

Kohler CH620-3192 19 HP Command Twin Cylinder

Kohler CH620-3192 19 HP Command Twin Cylinder
Supersedes CH620-3103, CH18S-62500 18 HP, CH620-3002, CH620-3157
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: CH18S Basic Replacement NO PANEL
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1899.99
Retail Price $2298.46

Kohler CH620-3155 19 HP Command Twin Cylinder

CH620-3155 Basic with Panel
Supersedes CH620-3101, CH18S-62503 18 HP & CH620-3004
1" x 3" Crankshaft with 1/4" keyway, tapped 3/8-24
Dual Element Air Cleaner
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: CH18S Basic Replacement With Panel
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Note: Image is a stock photo of a CH620 engine
NO SALES TO CALIFORNIA

Our Price $1929.99
Retail Price $2334.81

Kohler CH620-3191 19 HP Command Twin Cylinder

CH620-3191 E3 Basic W/Panel
Supersedes CH620-3154, CH18S-62501 18 HP, CH620-3003, CH620-3154
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: CH18S Basic Replacement With Panel
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Note: Image is a stock photo of a CH620 engine
NO SALES TO CALIFORNIA

Our Price $1929.99
Retail Price $2334.81

Kohler CH640-3150 20.5 HP Command Twin Moridge ZTR Engine

Kohler CH640-3150 20.5 HP Command Twin Moridge ZTR Engine
1-1/8" x 3-11/32" Crankshaft With 1/4" Keyway - Tapped 7/16-20 (24 014 351-S aka 24014351S)
12 Volt Electric Starter
15 Amp Alternator
Heavy Duty Cannister Style Air Cleaner
Includes Fuel Pump
Muffler - Cannister Muffler Kit 24 786 06-S aka 2478606S
Application: Grasshopper & Woods mowers
Supersedes CH640-3010, CH640-3071, CH20-64755
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2399.99
Retail Price $2811.81

This item is Currently Unavailable

Kohler CH620-3132 19 HP Command Twin Cylinder

CH620-3132 Walker E3 ZTR
Supersedes CH18S-62623 18 HP, CH621-3012. CH621-3010
Flywheel Mount x Stub Shaft Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Walker - ZTR
May Require Conversion Kit from Walker (Replaces PA-52518 & PA-52546 with kit from Walker)
Shipping Weight = 120 lbs
Supersedes PA-52518 aka TH16-52518 and PA-52546 aka TH16-52546 with conversion kit from Walker
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2279.99
Retail Price $2665.36

Kohler CH640-3266 20.5 HP Command Twin Cylinder

Kohler CH640-3266 20.5 HP Command Twin Cylinder - Husqvarna Construction
Supersedes CH640-3121, CH640-3223
1" x 3" Crankshaft, with 1/4" keyway, tapped 7/16-20
Heavy Duty Air Cleaner
12 Volt Electric Start
15 Amp Alternator
Includes Fuel Pump
Application: Huaqvarna - Construction
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2169.99
Retail Price $2527.75

Kohler CH640-3136 20.5 HP Kubota ZTR

Kohler CH640-3136 20.5 Kubota ZTR
Crankshaft FLUSH (No crankshaft extension)
Supersedes CH640-3029
12 Volt Electric Starter (Shift Style Solenoid)
15 Amp Stator
Oil Filter (Oil Pump)
Standard Air Cleaner
No tank, no muffler
Remote Controls
Shipping Weight = 120 lbs
NOTE: Image is Generic
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2319.99
Retail Price $2712.51

Kohler CH620-3159 19 HP Command Twin Cylinder

CH620-3159 19 HP Basic with Panel Anti-Icing
Supersedes CH18S-62507, CH620-3006, CH620-3105
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: CH18S Basic Replacement With Panel ANTI-ICING
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2069.99
Retail Price $2500.06

This item is Currently Unavailable

Kohler CH730-3015 LP basic with panel keyswitch

CH730-3015 21.5 HP LP Basic with panel keyswitch
Designed to Operate on Liquid Propane Fuel
Supersedes CH20-64570, CH640-3003
You can sub CH730-3310 for this, but will also have to buy muffler 24 786 06-S (2478606S)
1" x 3" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Engine-Mounted Fuel Pressure Regulator
Includes Engine-Mounted Fuel Vaporizer for Liquid Withdrawal
Includes Engine-Mounted 12V Fuel Shutoff Solenoid
Includes muffler (Muffler Kit 24 786 06-S aka 2478606s)
No tank
Application: Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3399.99
Retail Price $4093.28

Kohler CH640-3126 fka CH20S-64512 20 HP CH20S SIMPLICITY- SUN STAR

Kohler CH640-3126 20.5 HP SIMPLICITY- SUN STAR
Supersedes CH20S-64512, CH20S-64512, CH640-3110
Uses crankshaft 24 014 06-S nka 24 014 347-S
1-1/8" x 2-3/4" (PTO Mtg Face) = 28.55 mm x 70.8 Crankshaft, Drilled & Tapped 7/16-20
Electric Start
15 amp Stator
No Muffler - No Tank
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1979.99
Retail Price $2310.35

Kohler CH640-3120 fka CH20S-64519 20.5 HP CH20S GARDNER-TERRAMITE (BACKHOE)

Kohler CH640-3120 fka CH20S-64519 20.5 HP CH20S GARDNER-TERRAMITE (BACKHOE)
No Longer Available, repair with Long Block 24 523 89
Supersedes PA-64519, PA-CH640-3055
Twin Cylinder with Cast Iron Sleeves
OHV Cylinder Head Style
Stub Shaft (1-1/2" x 3/16") with Flywheel Drive Adaptor (52 144 19-S - 1" x 2.53" with 1/4" keyway, tapped 3/8-16)
12 Volt Electric Starter with 15 Amp Stator
Oil Filter & oil pump
Standard Duty Air Cleaner
Has Muffler 24 068 05-S aka 2406805S
Pulse Fuel Pump
Remote Controls
Used in Terramite Backhoe
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is No Longer Available (NLA) and there is no substitute for it.

Our Price $2699.99
Retail Price $3186.16

This item is Currently Unavailable

Kohler CH620-3190 19 HP Command Twin Cylinder

CH620-3190 Basic
Supersedes CH620-3102, CH620-3156, CH18S-62587 18 HP
1-1/8" x 4" Crankshaft with 1/4" keyway, tapped 7/16-20
Dual Element Air Cleaner
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
No Muffler - Transfer Existing
Application: CH18S Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Note: Image is a stock photo of a CH620 engine
NO SALES TO CALIFORNIA

Our Price $1949.99
Retail Price $2342.71

Kohler CH640-3228 20.5 HP CH20S BASIC

Kohler CH640-3228 20.5 HP CH20S BASIC
Supersedes Kohler 20 HP CH20S-64672 PRO, CH640-3005, CH640-3203
Cast Iron Sleeve
OHV Cylinder Head Style
Air Cooled Cooling System
1-1/8" x 4" Crankshaft, Drilled & Tapped 7/16-20 UNF
.25" Keyway
12 Volt Electric Start
Anti-Icing Features
Starter Side Exhaust System
Round Air Cleaner w/ Snorkel to
Shipping Weight = 123 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $1979.99
Retail Price $2385.98

This item is Currently Unavailable

Kohler CH680-3045 22.5 HP CH20S LINCOLN ELECTRIC WELDER

Kohler CH680-3045 22.5 HP CH20S LINCOLN ELECTRIC WELDER
Supersedes CH20S-64683, CH22-76529, CH23-76635
Uses crankshaft 24 014 30-S nka 24 014 359-S aka 24014359S Tapered Shaft
Electric Start
15 amp Stator
No Muffler
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2079.99
Retail Price $2423.93

Kohler CH680-3044 FKA CH20S-64712 20 HP MILLER BOBCAT

Kohler CH680-3044 22.5 HP FKA CH20S-64712 20 HP CH20S MILLER ELEC-BOBCAT ELCLOS
Supersedes CH20-64712, CH23-76626
Uses crankshaft 24 014 385-S (1" DIA. THREADED 1-14 UNS-2 x 3.5")
Electric Start
15 amp Stator
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2189.99
Retail Price $2562.81

Kohler CH680-3093 22.5 HP Command Twin EXMARK - Lazer Z ZTR

CH680-3093 22.5 HP Kohler Command Twin for EXMARK - Lazer Z ZTR
Supersedes CH23S-76581 aka CH23-76581
1" x 2-3/4" Crankshaft with 1/4" keyway - tapped 7/16-20
Similar to CH20-64697 which is discontinued
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Also include front stub shaft (24 755 08-S aka 2475508S), Oil Pump and filter, Fuel pump & low mount muffler 2406818S aka 24 068 18-S - Filter Side Straight
Application: Exmark Lazer Z ZTR
Air Cleaner: Dual Element
Shipping Weight = 125 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more.

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2279.99
Retail Price $2652.24

Kohler CH680-0018 FKA CH20S-64635 20 HP MILLER ELECTRIC

Kohler CH680-0018 22.5 HP E2 HOBART FKA CH20S-64635 20 HP CH20S MILLER ELECTRIC
Uses crankshaft 24 014 385-S (1" DIA. THREADED 1-14 UNS-2 x 3.5")
Fixed Speed 3750 RPM
Electric Start
15 amp Stator
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2179.99
Retail Price $2553.84

This item is Currently Unavailable

Kohler CH640-3155 20.5 HP CH20S TORO - DINGO SKID STEER LD

Kohler CH640-3155 20.5 HP CH20S TORO - DINGO SKID STEER LD
Supersedes CH640-3021, CH20S-64763, CH20S-64667 & PA-64733
Toro Dingo Skid Steer LD
Cast Iron Sleeve
1" x 2" Crankshaft with .25 (6mm) Keyway
Drilled & Tapped 3/8-24
12 Volt Electric Starter (Shift Style Solenoid)
15 Amp Stator
Oil Filter (Oil Pump)
Standard Duty Air Cleaner
No tank, no muffler
Remote Controls
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2179.99
Retail Price $2546.69

Kohler CH640-3265 20.5 HP Command Twin Cylinder

CH640-3265 20.5 HP Basic No Panel
Supersedes CH640-3204, CH20S-64500,CH640-3006, CH640-3229
1-7/16" x 4-3/8" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement NO PANEL
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1899.99
Retail Price $2281.91

Kohler CH640-3261 20.5 HP Command Twin Cylinder

CH640-3261 20.5 HP
Supersedes CH20S-64501, CH640-3002, CH640-3202, CH640-3227
1-7/16" x 4-3/8" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement With Panel
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1919.99
Retail Price $2328.15

Kohler CH640-3264 20.5 HP Command Twin Cylinder Basic With Panel LPAC

CH640-3264 20.5 HP Command Twin Cylinder Basic With Panel LPAC (Low Profile Air Cleaner)
Supersedes CH640-3205, CH20S-64503, CH640-3004, CH640-3230
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement With Panel
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1919.99
Retail Price $2328.15

Kohler CH640-3226 20 HP Command Twin Cylinder

CH640-3226 20.5 HP
Supersedes CH640-3201, CH20S-64594, CH640-3007
1-7/16" x 4-1/2" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: PRO Basic Replacement - SIMILAR TO 64501
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1859.99
Retail Price $2262.91

Kohler CH640-3263 20.5 HP Command Twin Cylinder

CH640-3263 20.5 HP
Supersedes CH640-3206, CH20S-64595, CH640-3008, CH640-3225
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: PRO Basic Replacement - SIMILAR 64503
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $1929.99
Retail Price $2338.14

Kohler CH680-3094 FKA CH23-76582 E3 Kubota ZTR

Kohler CH680-3094 FKA CH23-76582 E3 Kubota ZTR
Supersedes CH23-76582, CH22-64700
Electric Start
15 amp Stator
Uses Crankshaft Part Number 24 014 361-S AKA 24014361-S
Crankshaft Dimensions: 1-1/2" x 3/16"
Valve Cover Fuel Pump
No Muffler
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2199.99
Retail Price $2575.75

Kohler CH640-3149 20.5 HP Command Twin Cylinder

CH640-3149 20.5 HP Command Twin Cylinder Morridge MFG
Supersedes CH18-62550, CH20S-64510, CH18-62510, CH640-3075
1-1/8" x 3-3/8" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Moridge
Has front stub shaft 24 029 09-S
Includes cannister muffler 24 786 06-S - Low Mount Starter Side outlet
Shipping Weight = 121 lbs
Can be used in place of CH20S-64632 (which is discontinued) by removing the stub shaft & reusing the front screen from the old engine
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2169.99
Retail Price $2525.41

Kohler CH680-3123 22.5 HP CH22S GARDNER - BUFFALO TURBINE-BLOWER

Kohler CH680-3123 22.5 HP CH22S GARDNER - BUFFALO TURBINE
Supersedes CH680-3046, CH22S-76632 22 HP CH22S GARDNER - BUFFALO TURBINE
Uses crankshaft 24 014 04-S
1-7/16" x 4.46" shaft
Electric start
15 amp stator
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is No Longer Available (NLA) and there is no substitute for it.

Our Price $2839.99
Retail Price $3351.92

This item is Currently Unavailable

Kohler CH640-3221 20.5 HP Command Twin - Walker

CH640-3221 20.5 HP Command Twin Cylinder Walker ZTR
Supersedes CH640-3159, CH20S-64660, CH640-3115, PA-64554 aka CH20-64554
LAST ONE AVAILABLE
Flywheel Mount (24 144 22-S aka 2414422S) x Stub Shaft Crankshaft (24 014 361-S aka 24014361S
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Walker - MT20 ZTR
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
Click the images below for extra pictures of the engine
NO SALES TO CALIFORNIA

Our Price $2489.99
Retail Price $2909.91

Kohler CH640-3138 20.5 HP Makelim - Pro Chem

CH640-3138 20.5 HP Command Pro Makelim Pro Chem
Please email us to ask about stock before buying
Supersedes CH18-62520, CH20S-64636 & CH640-3022, CH640-3058
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
Also has front stub shaft 24 144 23-S aka 2414423S
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2169.99
Retail Price $2530.52

This item is Currently Unavailable

Kohler CH680-3041 23 HP Makelim - Pro

CH680-3041 23 HP Command Pro Makelim Pro
Please email us to ask about stock before buying
NOTE: Picture is of the 20.5 HP engine. This listing is for the 23 HP engine
Supersedes CH680-3020
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
Also has front stub shaft 24 144 23-S aka 2414423S
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2309.99
Retail Price $2680.64

Kohler CH680-3138 22.5 HP CH22S PITT AUTO - BUFFALO TURBINE-BLOWER

Kohler CH680-3138
Supersedes CH680-3049, CH22S-76558 22 HP CH22S PITT AUTO - BUFFALO TURBINE-BLOWER
Horschel Brothers Precision
Uses crankshaft 24 014 04-S
1-7/16" x 4.46" shaft
Electric start
15 amp stator
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2729.99
Retail Price $3190.25

This item is Currently Unavailable

Kohler CH680-3170 22.5 HP Command Twin Cylinder E16 Basic Pro (LPAC)

CH680-3170 22.5 HP E16 Basic Pro (LPAC)
Supersedes CH22S-76601, CH680-3001, CH680-3128
Low Profile Air Cleaner (LPAC)
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2019.99
Retail Price $2436.59

Kohler CH680-3135 22.5 HP Command Twin Cylinder

Kohler CH680-3135 22.5 HP
Supersedes CH22S-76501, CH680-3002
1-7/16" x 4-1/2" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: PRO Basic Replacement - With Panel
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2049.99
Retail Price $2472.74

Kohler PA-CH680-3015 22.5 HP CH23S TORO-DINGO-SKID STEER

Kohler PA-CH680-3015 22.5 HP CH23S TORO-DINGO-SKID STEER
Supersedes CH23S-76549, PA-66559 & PA-66557
Uses Crankshaft 24 014 90-S - 1" x 2" shaft with 1/4" keyway, tapped 3/8-24
Air Cleaner: None
Electric Start
15 amp Alternator
Fuel Pump & Oil Filter
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2199.99
Retail Price $2543.51

This item is Currently Unavailable

Kohler CH680-3043 E3 Miller Electric

Kohler CH680-3043 E3 Miller Electric
Supersedes CH23S-76628
Uses 24 522 426 short block
Twin Cylinder, Horizontal Shaft
Cast Iron Sleeve
CH680 MILLER ELECTRIC (5%GOV)
Crankshaft: (24014385-S) - Shaft 1" x 3-11/16" (25.40 mm) x (92.84 mm) PTO Mtg Face. Externally threaded 1-14 UNS-2x3.5"
12 Volt Electric Start: (2509811-S) Solenoid Shift Style
Fuel Pump: (2439316-S) Pulse Pump
Alternator: (237878-S) 15/20 Amp
Regulator: (4140310-S)
Oil Filter: (1205001-S)
Oil Pressure Switch: (2509923-S)
Standard Air Cleaner: (2408303-S) Standard, High
Shipping Weight = 120 lbs
Click the image below for a larger view of the back of the engine
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2229.99
Retail Price $2588.93

Kohler CH680-3087 22.5 HP Command Twin Cylinder

CH680-3087 22.5 HP Exmark
Supersedes CH22-66529 & CH23S-76513
1" x 2-3/4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Exmark Lazer - PRO SERIES. Fits Exmark LZ22KCS523 and Toro Z253
1" x 2-25/32, Tapped 7/16-20, With full 1/4" keyway Crankshaft
Air Cleaner: Dual Element
Muffler: Muffler: 2406817S
Uses front stub shaft 24 755 08-S aka 2475508S
Shipping Weight = 125 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more.

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2419.99
Retail Price $2816.56

Kohler CH680-3171 22.5 HP WALKER - ZTR

Kohler CH680-3171 22.5 HP CH20S WALKER - ZTR
Will work in place of CH680-3057, CH641-3013, CH20S-64757, CH640-3013
Supersedes CH20S-64757, CH640-3013, CH641-3013, CH20S-64694, CH641-3012, CH680-3127, CH640-3109
Twin Cylinder with Cast Iron Sleeves
OHV Cylinder Head Style
Stub Shaft (1-1/2" x 3/16") 24 014 34-S with Front Shaft (24 144 47-S - 1-1/8" x 1.5" with 1/4" keyway, tapped 7/16-120
12 Volt Electric Starter with 15 amp Stator
No muffler - No tank
Pulse fuel pump
Has Oil Filter & Oil Pump
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2579.99
Retail Price $3000.46

Kohler CH730-3213 23.5 HP CH730S Exmark ZTR

Kohler CH730-3213 23.5 HP CH730S Exmark ZTR
Supersedes CH730-0155
Uses crankshaft 24 014 06-S nka 24 014 347-S
1-1/8" x 2.79" (PTO Mtg Face) = 28.55 mm x 70.8 Crankshaft, Drilled & Tapped 7/16-20
Electric Start
15 amp Stator
HD Air Cleaner
Fuel Pump
Front Shaft 24 755 08-S aka 2475508s
No Muffler
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is No Longer Available (NLA) and there is no substitute for it.

Our Price $2499.99
Retail Price $2957.73

This item is Currently Unavailable

Kohler CH730-3308 23.5 HP CH730S GARDNER (OH) VAN AIR COMPRESSOR

Kohler CH730-3308 23.5 HP CH730S E3 GARDNER (OH) VAN AIR COMPRESSOR
Supersedes CH730-0011, CH730-3230
Uses Crankshaft 24 142 04-S
Electric Start
15 amp Alternator
Has Fuel Pump & Oil Filter
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2419.99
Retail Price $2824.83

This item is Currently Unavailable

Kohler CH730-3267 Kohler Command 23.5 HP Engine Miller Electric

Kohler CH730-3267 Kohler Command 23.5 HP Engine Miller Electric Trailfish
Twin Cylinder, Horizontal Shaft
Cast Iron Sleeve
Crankshaft: (24014385-S) - Shaft 1" x 3-11/16" (25.40 mm) x (92.84 mm) PTO Mtg Face. Externally threaded 1-14 UNS-2x3.5"
12 Volt Electric Start: (2509811-S) Solenoid Shift Style
Fuel Pump: (2439316-S) Pulse Pump
Alternator: (237878-S) 15/20 Amp
Regulator: (4140310-S)
Oil Filter: (1205001-S)
Oil Pressure Switch: (2509923-S)
Standard Air Cleaner: (2408303-S) Standard, High
Shipping Weight = 120 lbs
Click the image below for a larger view of the back of the engine
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is No Longer Available (NLA) and there is no substitute for it.

Our Price $2439.99
Retail Price $2843.48

This item is Currently Unavailable

Kohler CH730-3268 23.5 HP Miller Electric Catfish

Kohler CH730-3268 23.5 HP Miller Electric Catfish
Uses Crankshaft 24 142 385-S (1" Threaded Shaft 1-14 UNS-2 x 3.5")
Electric Start
15 amp Alternator
Has Fuel Pump & Oil Filter
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2149.99
Retail Price $2493.08

Kohler CH730-0019 23.5 HP CH730S VERMEER STUMP GRINDER

Kohler CH730-0019 23.5 HP CH730S VERMEER STUMP GRINDER
Kohler 25 HP
CH730-0019
Vermeer Stump Grinder
Supersedes CH25-68587, CH25-68628, CH25-68652
1.437" x 4.453" Crankshaft
Drilled & Tapped 5/8-18 UNF
.375" Keyway
12 Volt Electric Start
15 Amp Alternator
Heavy Duty Canister Air Filter
Oil Sentry (not connected)
Has Oil Cooler
Mechanical Fuel Pump
Muffler: No
Fuel Tank: No
Throttle Controls: Engine Mounted
Two-year limited warranty
Sales Notes: Engine mounted controls w/key switch
Includes Air Filter Minder (Shipped Loose)
Shipping Weight = 123 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2679.99
Retail Price $3117.37

This item is Currently Unavailable

Kohler PA-CH680-3012 22.5 HP WALKER ZTR

Kohler CH680-3012 22.5 HP Walker ZTR
Supersedes CH20-76634
Stub Shaft with Flywheel Adapter
Electric Start
15 amp Stator
No Air Cleaner or Muffler
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2419.99
Retail Price $2827.62

Kohler CH730-3320 Kohler Command 23.5 HP Engine Miller Electric

Kohler CH730-3320 Kohler Command 23.5 HP Engine Miller Electric
Twin Cylinder, Horizontal Shaft
Cast Iron Sleeve
Crankshaft: (24014385-S) - Shaft 1" x 3-11/16" (25.40 mm) x (92.84 mm) PTO Mtg Face. Externally threaded 1-14 UNS-2x3.5"
12 Volt Electric Start: (2509811-S) Solenoid Shift Style
Fuel Pump: (2439316-S) Pulse Pump
Alternator: (237878-S) 15/20 Amp
Regulator: (4140310-S)
Oil Filter: (1205001-S)
Oil Pressure Switch: (2509923-S)
Standard Air Cleaner: (2408303-S) Standard, High
Shipping Weight = 130 lbs
IMAGE IS REPRESENTATIVE (It's a pic of a similar engine)
Click the image below for a larger view of the back of the engine
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2529.99
Retail Price $2951.03

Kohler CH730-3010 23.5 HP CH730S MARKETING BASIC

Kohler CH730-3010 23.5 HP CH730S MARKETING BASIC Command Series Twin Cylinder
Supersedes CH730-3208, CH730-3038 & CH730-0038, CH730-3004
Kohler 25 HP
1-7/16" x 4-1/2" Crankshaft
Drilled & Tapped 5/8-18 UNF
.375" (9.5 mm) Keyway
12 Volt Electric Start (Solenoid Shift Style)
15 Amp Alternator (Regulated)
Oil Sentry (not connected)
PTO Sleeve Bearing
Mechanical Fuel Pump
Has Oil Filter
Muffler: No
Fuel Tank: No
Has Fuel Pump
Throttle Controls: Remote
Two-year limited warranty
Sales Notes: Blower housing will accept fixed guard
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2019.99
Retail Price $2440.42

Kohler CH730-3008 23.5 HP Command Pro CH730 BASIC

Kohler CH730-3008 23.5 HP CH730 23.5 HP BASIC
Supersedes PA-68591 & PA-68503, CH730-0039, CH730-3201, CH730-3000
25hp Command Oil Filter
Overhead Valve Design
Cast Iron Cylinder Sleeve
Has Electric Start
Low Oil Shutdown
Fuel Tank: none
Oil Capacity: 2.1 Quart
Oil Type: SAE 10w-30
Shaft Size: 1-1/8" x 4"
Muffler: None
Depth (Less Shaft): 13.5" Width: 17.2"
2-Year Manufacturer's Warranty
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2069.99
Retail Price $2498.13

Kohler CH640-3154 FKA CH640-3019 20.5 HP CH640S TORO DINGO TX SKID STEER

Kohler CH640-3154 FKA CH640-3019 20.5 HP CH640S TORO DINGO SKID STEER
Uses crankshaft 24 014 90-S - 1" x 2" With 1/4" keyway, drilled & tapped 3/8-24
Front stub shaft
Electric Start
15 amp Stator
Shipping Weight = 120 lbs
Supersedes CH20-64656, CH20-64762, CH20-64637, CH640-3019

Back View of the engine This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2269.99
Retail Price $2637.17

Kohler CH680-3088 22.5 HP Command Twin Cylinder EXMARK - LAZER Z - COMMERCIAL RIDER

Kohler CH680-3088 22.5 HP fka CH23S-76584 23 HP CH23S EXMARK - LAZER Z - COMMERCIAL RIDER
Supersedes Command Pro CH23S-76584
Also Replaces: CH23S-76569, CH680-3090, PA-76550
1" x 2.77" Crankshaft
Cast Iron Cylinder Liners
Full Pressure w/full-flow filter lubrication
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Air Cleaner: Remote HD A/C
Muffler: Muffler: 2406818S Filter Side Straight
Uses front stub shaft 24 755 08-S aka 2475508S
Dimensions: 13.8L x 17.7W x 19.0H
Shipping Weight = 125 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2549.99
Retail Price $2980.04

Kohler CH730-3254 23.5 HP CH730S SCAG

Kohler CH730-3254 23.5 HP CH730S SCAG
Supersedes PA-68699, PA-68579 & PA-68613, CH730-0066
Kohler 25 HP CH730S-0066 Scag
1-1/8" x 3-11/32 Crankshaft with 1/4" Full Keyway
Drilled & Tapped 7/16-20
12 Volt Electric Start
HD Canister Air Cleaner System
15 Amp Alternator
Mechanical Fuel Pump
Has Oil Filter
Canister Muffler Kit 24 786 11-S aka 2478611S. Filter side straight
Has Fuel Pump
Throttle Controls: Remote
Shipping Weight = 131 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2639.99
Retail Price $3084.39

This item is Currently Unavailable

Kohler CH682-3013 22.5 HP Command Twin Cylinder Moridge ZTR

Kohler CH682-3013 22.5 HP Moridge ZTR
Supersedes Command Pro CH680-3011, CH680-3055, CH680-3086
1-1/8" x 3-11/32" Crankshaft
Cast Iron Cylinder Liners
Full Pressure w/full-flow filter lubrication
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Air Cleaner: HD Cannister A/C
Muffler: Muffler Kit 2478623S Starter Side 45 degrees down outlet
Uses front stub shaft 24 144 53-S aka 2414453S
Dimensions: 13.8L x 17.7W x 19.0H
Shipping Weight = 128 lbs
NOTE: Picture is of a similar engine
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2329.99
Retail Price $2722.15

Kohler CH730-0120 23.5 HP CH730S WALKER MFG - ZTR

Kohler CH730-0120 23.5 HP CH730S-0120 WALKER MFG - ZTR
Supersedes CH25-68686 aka PA-68686 & CH25-68544 aka PA-68544
Twin Cylinder with Cast Iron Sleeves
Stub Shaft w/Flywheel Drive Adapter (24 144 47-S)
12 Volt Electric Start
Dual Element Air Cleaner (round cover)
15 Amp Alternator
Mechanical Fuel Pump (Valve Cover Pump 25 559 11-S)
Has Oil Temperature Sensor
Has Oil Filter
No Muffler - No Tank
Starter Type: 12 Vt. Electric
Throttle Controls: Remote
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2749.99
Retail Price $3204.95

This item is Currently Unavailable

Kohler CH730-3214 23.5 HP CH730S TORO DINGO SKID STEER

Kohler CH730-3214 23.5 HP CH730S TORO DINGO TX Skid Steer Engine
Supersedes CH730-0162, PA-68688 & CH730-0072 & CH730-0132
1" x 2" Crankshaft with 1/4" Keyway, Drilled & Tapped 3/8-24
12 Volt Electric Start with 15 amp Alternator
Standard Air Cleaner System
Pulse Fuel Pump
Has Oil Filter and Oil Cooler
No Muffler
Throttle Controls: Remote
Two-year limited warranty
Sold w/Flywheel Stub Shaft 24 144 13-S
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2349.99
Retail Price $2727.63

Kohler CH730-3244 23.5 HP CH730S FINN CORP LOADER BACKHOE 9T

Kohler CH730-3244 23.5 HP
Supersedes CH730-0037 & CH25-68654 25 HP
CH730S FINN CORP LOADER BACKHOE 9T
Crank Size: 1-1/2" x 1/2" with 9 tooth spline
This engine uses 24 522 342 Shortblock (not included - listed for reference only)
Electric Start with 15 amp Stator
V-Twin Cylinder Air Cooled 4-cycle
OHV with cast iron cylinder liners
Max Power at 3600 RPM: 25 HP
44 cu. In. Displacement
3.27 in Bore
2.64 in Stroke
39.9 lbs ft Peak Torque
9.0:1 Compression Ratio
2.0 qt. Oil Capacity
full pressure w/ full-flow filter lubrication
Dimensions: 13.8L x 17.7W x 19.0H
Shipping Weight = 128 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $3429.99
Retail Price $4037.28

This item is Currently Unavailable

Kohler CH730-0169 John Deere 23.5 HP Command Series Twin Cylinder

CH730-0169 John Deere Command Series 23.5 HP
Applications: John Deere Turf Care Tractor
Supersedes CH25-68624
15 amp Alternator
1-1/8" x 2.79" crankshaft with 1/4" keyway, tapped 7/16-20
Oil Filter
Pulse fuel pump
No tank or muffler
Shipping Weight: 110 lbs
Starter: Electric Start with 15 amp alternator
Has Front Drive shaft 24 755 08-S aka 2475508S
Will replace CH730-0137 (Transfer Muffler or order new 24 068 141-S)
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2389.99
Retail Price $2770.75

Kohler CH732-3011 23.5 HP Command Series Twin Cylinder

CH732-3011 23.5 HP Vermeer Pump
1" x 3.66" Externally Threaded Crankshaft 1-14
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Vermeer Pump Engine
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3099.99
Retail Price $3615.38

Kohler CH730-3225 23.5 HP Command Pro Exmark Lazer Z

CH730-3225 23.5 HP
Applications: Exmark Laser Z
Replaces (Supersedes) CH730-0003, PA-68606 AKA CH25S-68606 or CH25-68606 and CH25S-68543 aka CH25-68543 and CH25-68695 aka CH25S-68695
1-1/8" x 2-3/4", Tapped 7/16-20 with full 1/4" keyway Crankshaft
Air Cleaner: Heavy Duty
Muffler: Comes with Low Mount, Filter Side muffler 24 068 18-S, aka 2406818S
Includes Front Stub Shaft
Shipping Weight: 130 lbs
Starter: Electric
Comments: Replaces 68606
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2649.99
Retail Price $3097.68

Kohler CH732-3001 23.5 HP Command Series Twin Cylinder

CH732-3001 23.5 HP
Supersedes part number(s) CH730-0002, CH730-3205
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2269.99
Retail Price $2741.12

Kohler CH730-3007 23.5 HP Command Series

CH730-3007 Command Series 23.5 HP
Supersedes CH25-68590, CH730-0040, CH730-3203 & CH730-3040, CH730-3002 - Can also be used in place of CH730-3208
Applications: Universal, Replaces PA-68590 & PA-68501
1-7/16" x 4.543", Tapped 5/8-18 with full 3/8" keyway Crankshaft
12 Volt Electric Start with 15 amp Stator
Cast Iron Sleeves
Air Cleaner: Dual Element
Muffler: No Muffler, transfer from original engine
Low Oil Shutdown
Has Oil Filter & Valve Cover Fuel Pump
Shipping Weight: 125 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2079.99
Retail Price $2498.13

Kohler CH730-3009 23.5 HP Supersedes CH730-3206 25 HP Command Series Twin Cylinder

CH730-3003 23.5 HP
Supersedes CH730-3009, CH730-3206, CH730-3101 & CH730-0131 25 HP
Splined Shaft x Stub Shaft Crankshaft (13 splines)
12 Volt Electric Starter
25 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2299.99
Retail Price $2783.61

Kohler CH732-3000 23.5 HP Supersedes CH730-3200 25 HP Command Series Twin Cylinder

CH732-3000 23.5 HP
Supersedes CH730-0001, CH730-3200
1-7/16" x 4-1/2" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 122 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2269.99
Retail Price $2741.12

This item is Currently Unavailable

Kohler CH730-3266 21.5 HP Basic LPG Command Series Twin Cylinder

CH730-3266 21.5 HP Basic LPG Comand Twin
Designed to Operate on Liquid Propane Fuel
1-7/16" x 4-5/16" Crankshaft with 3/8" Keyway. Tapped 5/8-18 UNF
12 Volt Electric Starter - solenoid shift
15 Amp Alternator
Includes Muffler 24 786 06-S aka 2478606S - Starter Side Straight outlet
Includes Snap In Key Switch
Includes Fuel Regulator Assembly 24 403 23-S
Includes Vaporizer Assembly 24 465 04-S
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $3479.99
Retail Price $4219.76

This item is Currently Unavailable

Kohler CH730-3001 23.5 HP Command Series Twin Cylinder

CH730-3001 23.5 HP
Supersedes CH730-0041, CH730-3202
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2769.99
Retail Price $3353.98

This item is Currently Unavailable

Kohler CH730-3347 23.5 HP Gardner OH Finn Corp

Kohler CH730-3347 23.5 HP Gardner OH Finn Corp
Supersedes CH730-0092, CH730-3231 & CH730-3333
1-1/8" x 4" Crankshaft with 1/4" Keyway, Drilled & Tapped 3/8-24
12 Volt Electric Start with 25 amp Alternator
Standard Air Cleaner System (Flat A/C)
Valve Cover Fuel Pump
Has Oil Filter and Oil Cooler
Has Muffler 24 068 132-S aka 24068132S - Low Mount Filter Side
Throttle Controls: Remote
Three-year limited factory warranty
Has Flywheel Stub Shaft 24 144 16-S aka 2414416S
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3019.99
Retail Price $3515.13

Kohler CH742-3111 25 HP Command Series Moridge ZTR

Kohler CH742-3111 25 HP Command Series Moridge ZTR
Supersedes CH740-3111, CH740-3164
1-1/8" x 3-11/32" Keyed Crankshaft
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Has Cannister Muffler 24 786 06-S
Has Front Stub Shaft 24 144 23-S
Has oil cooler
Has Heavy Duty Air Cleaner
Shipping Weight = 130 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2619.99
Retail Price $3046.82

Kohler CH740-0101 LP NG Marketing Basic

CH740-0101 25 HP Kohler Command Twin Horizontal OHV
CH740 LP/NG MARKETING BASIC (WELL-GAS)
Rated per SAE J1940 as 22 HP on Propane & 19.5 HP on Natural Gas
1-1/8" x 4" (28.5mm x 100mm) Crankshaft: (Part Number 24014345-S)
Crankshaft is Drilled & Tapped 7/16-20 UNF
Has 1/4" Keyway
12 Volt Electric Start: (2509811-S) Solenoid Shift Style with 15 Amp Alternator
Air Filter: (4708303-S) Standard
Oil Cooler: (5475521-S)
Oil Filter: (52002-S)
Has Key Switch Assembly: (2509930-S)
Has Mechanical Fuel Pump: (2455910-S) Valve Cover Style
Has Low Pressure Regulator: (6240302-S) Gaseous Fuel - Included as an accessory, NOT mounted to engine
NOTE: Customer supplies high pressure fuel regulator for propane usage (if applicable)
Ideal for Industrial Utility and Well-Gas Applications
Shipping Weight 120 lbs.
Three-year limited factory warranty
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2379.99
Retail Price $3082.11

Kohler CH740-3186 LP NG Mr Pumper

CH740-3186 25 HP Kohler Command Twin Horizontal OHV
CH740 LP/NG Mr Pumper
Rated per SAE J1940 as 22 HP on Propane & 19.5 HP on Natural Gas
1-1/8" x 4" (28.5mm x 100mm) Crankshaft: (Part Number 24014345-S)
Crankshaft is Drilled & Tapped 7/16-20 UNF
Has 1/4" Keyway
12 Volt Electric Start: (2509811-S) Solenoid Shift Style with 15 Amp Alternator
Air Filter: (4708303-S) Standard
Oil Cooler: (5475521-S)
Oil Filter: (5205002-S)
Has Key Switch Assembly: (2509930-S)
Has Mechanical Fuel Pump: (2455910-S) Valve Cover Style
Has Low Pressure Regulator: (6240302-S) Gaseous Fuel - Included as an accessory, NOT mounted to engine
Includes Muffler 24 068 143-S aka 24068143S (Filter Side Muffler)
NOTE: Customer supplies high pressure fuel regulator for propane usage (if applicable)
Ideal for Industrial Utility and Well-Gas Applications
Will work in place of CH740-0101 (if CH740-0101 is on backorder)
ALSO NOTE: Picture is of CH740-0101
Shipping Weight 120 lbs.
Three-year limited factory warranty
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2649.99
Retail Price $3210.51

Kohler CH740-3173 25 HP CH740QS STEINER-FRT. MTD.

Kohler CH740-3173 25 HP
Supersedes CH740-0026 27 HP CH740QS STEINER-FRT. MTD.
Uses Crankshaft 24 014 14-S, 1-1/8" x 3-11/32"
Electric Start
15 amp Alternator
Has Fuel Pump & Oil Filter
Shipping Weight = 114 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2449.99
Retail Price $2850.71

Kohler CH742-3121 25 HP CH740 GRASSHOPPER

Kohler CH742-3121 25 HP CH740 GRASSHOPPER
Supersedes CH25-68562, CH25-68637, CH25-68635, CH730-0075 & CH740-0037, CH740-0036, CH740-3169 Moridge Grasshopper
Formerly describes as a Kohler 27 HP
1-1/8" x 3-11/32" Crankshaft with 1/4" keyway, Drilled & Tapped 7/16-20 UNF
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Canister Style Muffler 24 786 06-S aka 2478606s - Starter Side Muffler
Dual Element Air Cleaner
Twin Cylinder
Application: Moridge - 727 - ZTR
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2589.99
Retail Price $2996.11

Kohler CH740-3137 Command Twin - Toro

Kohler CH740-3137 Command Twin - Toro
Tapered x .94" Crankshaft: (Part Number 24014357-S)
Crankshaft is Drilled & Tapped 3/8-16 UNC-2B
12 Volt Electric Start: (2509811-S) Solenoid Shift Style with 15 Amp Alternator
Standard (Flat) Air Filter
Oil Cooler: (2459457-S)
Has Mechanical Fuel Pump: (2455911-S) Valve Cover Style
NO Muffler (Transfer Existing)
Has E-Gov
Shipping Weight 120 lbs.
Three-year limited factory warranty
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2729.99
Retail Price $3163.59

This item is Currently Unavailable

Kohler CH740-3145 25 HP CH740S SCAG - TURF TIGER - RIDING MOWER

Kohler Command CH740-3145 25 HP CH740S SCAG - TURF TIGER - RIDING MOWER
Supersedes CH740-3132, CH740-3114, CH740-0021 & CH740-0041; CH740-3172 (Wiring harness has to be transferred)
Crankshaft Size: 1-1/8" x 3-11/32"
Uses Shortblock: 24 522 353
Cast Iron Cylinder Sleeves
12 Volt Electric Start with 15 Amp Alternator
Includes Muffler kit 24 786 11-S - Filter Side Straight
Max Power at 3600 RPM: 27 HP
Displacement: 44 cu. In.
Bore: 3.3 in.
Stroke: 2.64 in.
Peak Torque: 42.7 lbs. ft.
Mechanical Valve Cover Fuel Pump
Compression Ratio: 9.0:1
Oil Capacity: 2.0 quarts
Lubrication: full pressure w/ full-flow filter
Dimensions: 13.8L x 17.7W x 19.0H
Shipping Weight = 134 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2939.99
Retail Price $3348.09

Kohler CH740-3136 25 HP Toro

Kohler Command Pro CH740-3136 25 HP Toro
Crankshaft Size: 1" x 2", 1/4" keyway, tapped 3/8-24
No Air Cleaner (remote)
No Muffler
Electric Start
15 Amp Alternator
Has Oil Cooler 54 755 21-S aka 5475521s
Has Front Stub Shaft 24 144 13-S aka 2414413s
Idle Speed 1650 RPM - Max Power at 3650 RPM: 25 HP
Displacement: 44 cu. In.
Bore: 3.3 in.
Stroke: 2.64 in.
Peak Torque: 42.7 lbs. ft.
Compression Ratio: 9.0:1
Oil Capacity: 2.0 quarts
Lubrication: full pressure w/ full-flow filter
Dimensions: 13.8L x 17.7W x 19.0H
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2619.99
Retail Price $3052.83

Kohler CH742-3113 25 HP CH740S VERMEER

Kohler CH742-3113
Supersedes CH740-0061 25 HP CH740S VERMEER
1-7/16" x 4-1/2" shaft with 3/8" keyway, tapped 5/8-18
12 Volt Electric Start with 15 amp alternator
HD Air Cleaner
No muffler - No tank
Shipping Weight = 122 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2589.99
Retail Price $3011.49

Kohler CH740-3117 25 HP CH740S EXMARK - LAZER Z - ZTR

Kohler CH740-3117 25 HP
Supersedes CH740-0075 27 HP CH740S EXMARK - LAZER Z - ZTR, PA-CH740-0054, CH740-3175, CH740-3118
Has Heavy Duty Air Cleaner
Uses Crankshaft 24 014 06-S
1-1/8" x 2-3/4" (PTO Mtg Face) = 28.55 mm x 70.8 Crankshaft, Drilled & Tapped 7/16-20
Electric Start
15 Amp Alternator
Has front drive shaft 24 755 08-S
Has Pulse Fuel Pump, Oil Filter, Oil Cooler & Oil Pump
This engine can replace the 25 HP Kawasaki on JD737 or JD757 ZTR. You will need the following parts to go with it:
Muffler 24 068 129-S aka 24068129s
Exhaust Elbow 12 054 02-S aka 1205402s
Elbow Clamp 47 237 04-S aka 4723704s
Diode Kit 25 755 40-S aka 25755540s
Modification Kit: JD737-757 - Has Mounting Template (One hole needs to be drilled), Plug & Play Wiring Harness, Instructions
If you are considering this swap please email us & we will check stock & price everything required for the swap
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2649.99
Retail Price $3084.89

Kohler CH742-3112 25 HP Moridge M27 ZTR

Kohler CH742-3112 25 HP Moridge M27 ZTR fits Grasshopper 225 Mid Mount ZTR
Supersedes CH740-3110
Heavy Duty Air Cleaner
1-1/8" x 3.35" shaft with 1/4" keyway, tapped 5/8-18
12 Volt Electric Start with 15 amp alternator
Muffler Not Included (Transfer Original Muffler or Order 24 068 129-S aka 24068129S)
Shipping Weight = 124 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2519.99
Retail Price $2935.67

Kohler CH740-3363 25 HP Command Series Twin Cylinder

CH740-3363 25 HP Basic Command Series Twin
Supersedes CH740-0013 27 HP, CH740-3005
1-7/16" x 4-1/2" Crankshaft, tapped 5/8-18, with 3/8" keyway
Dual Element Air Cleaner
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
NOTE: Image is representative (of a similar engine) THIS ENGINE DOES NOT HAVE THE KEY SWITCH OR THE ENGINE MOUNTED CONTROLS
Shipping Weight = 130 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2349.99
Retail Price $2848.78

Kohler CH742-3102 25 HP Command Series Twin Cylinder

CH742-3102 25 HP
Supersedes CH740-0060, CH740-3007
1-7/16" x 4-1/2" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 121 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2879.99
Retail Price $3476.83

This item is Currently Unavailable

Kohler CH740-3390 25 HP Command Series Twin Cylinder

CH740-3390 25 HP Basic Command Series Twin
Supersedes CH740-0013 27 HP, CH740-3005, CH740-3362
1-7/16" x 4-1/2" Crankshaft, tapped 5/8-18, with 3/8" keyway
Dual Element Air Cleaner
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 148 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2519.99
Retail Price $2932.66

Kohler CH740-0045 25 HP Command Series Exmark Lazer Z

CH740-0045 25 HP Command Pro E2 Exmark Lazer Z Commercial Rider
Supersedes CH740-0007
1-1/8" x 2-3/4" Crankshaft
Heavy Duty Air Cleaner
12 Volt Electric Starter
15 Amp Alternator
Includes Fuel Pump
Has Filter Side muffler 24 068 18-S aka 2406818s
Has Front Stub Shaft 24 755 08-S aka 2475508s
Has oil cooler
Has Heavy Duty Air Cleaner
Application: Exmark Lazer Z Commercial Rider
Shipping Weight = 130 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2829.99
Retail Price $3298.32

Kohler CH742-3100 25 HP Command Series Twin Cylinder

CH742-3100 25 HP
Supersedes CH740-3002, CH740-0001 27 HP Command Series Twin Cylinder
Heavy Duty Air Cleaner
1-7/16" x 4-1/2" Crankshaft, with 1/4" keyway, tapped 7/16-20
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 121 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2479.99
Retail Price $3012.31

Kohler CH742-3103 25 HP Command Series Twin Cylinder

CH742-3103 25 HP
Supersedes CH740-0002 27 HP Command Series Twin Cylinder, CH740-3003
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 121 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2969.99
Retail Price $3589.67

This item is Currently Unavailable

Kohler CH740-3361 25 HP Command Series Twin Cylinder

CH740-3361 25 HP
Supersedes CH740-0004 27 HP, CH740-3004
1-1/8" x 4" Crankshaft
12 Volt Electric Starter
20 Amp Alternator
Includes Fuel Pump
Application: Basic Replacement
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2529.99
Retail Price $3021.61

This item is Currently Unavailable

Kohler ECH740-3059 25 HP Command Pro EFI - Vermeer

Kohler ECH740-3059 25 HP Command Pro EFI - Vermeer
Supersedes ECH740-3047
Splined (11 Tooth) Crankshaft
NOTE: Picture is representative - No Air Cleaner (Transfer existing or buy new from Vermeer)
Electric Start With 25 amp Alternator
Has Oil Pump & Cooler
No gas tank
Has Filter Side Muffler 24 068 146-S aka 24068146S

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Full three year commercial factory warranty
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3549.99
Retail Price $4079.05

Kohler ECH749-3063 26.5 HP Command Pro EFI

Kohler ECH749-3063 26.5 HP Command Pro EFI Scag Turf Tiger
Supersedes ECH749-3043, ECH749-3016,
1-1/8" x 3.346" Crankshaft with 1/4" Keyway, tapped 5/8-18 (Part number 24 014 204-S aka 24014204S)
Heavy Duty Air Cleaner
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
Has Muffler 24 068 35-S, nka 24 068 136-S (Filter Side Straight)

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3129.99
Retail Price $3612.64

Kohler ECH740-3066 25 HP Command Pro EFI - Basic LPAC

Kohler ECH740-3066 25 HP Command Pro EFI Basic LPAC (Low Profile Air Cleaner)
1" x 3.56" Crankshaft with 1/4" Keyway, tapped 7/16-20
Low Profile Air Cleaner
Electric Start With 20 amp Alternator
Has Oil Pump & Cooler
No gas tank -No muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Full three year commercial warranty
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3269.00
Retail Price $3932.01

Kohler ECH730-3005 23 HP Command Pro EFI

Kohler ECH730-3005 23 HP Command Pro EFI
Supersedes ECH730-3001
1-7/16" x 4-3/8" Crankshaft with 3/8" Keyway, tapped 5/8-18
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
No gas tank -No muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2699.99
Retail Price $3226.14

Kohler ECH730-3006 23 HP Command Pro EFI

Kohler ECH730-3006 23 HP Command Pro EFI
Please email us to ask about stock before buying this
Supersedes ECH730-3002
1-1/8" x 4" Crankshaft with 1/4" Keyway, tapped 7/16-20
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
No gas tank -No muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2699.99
Retail Price $3226.14

Kohler CH752-3101 Basic Panel keyswitch 27 HP

Kohler CH752-3101 27 HP CH750S BASIC KEY SW PANEL 1-1/8 DIA
Supersedes CH750-0007, CH750-0002, CH750-3007
Overhead Valve Design
Cast-Iron Cylinder Liners
Crankshaft-1-1/8" x 4.0" PTO Length, 1/4" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
Heavy Duty Canister Air Cleaner System
High Efficiency Grass Screen and Fan
Full Pressure Lubrication
Large Capacity In-Line Fuel Filter
Easy Access Valve Cover Oil Fill-Yellow
Oil Level Dipstick-Yellow
Large Capacity Oil Filter, Dual Oil Drain
Oil Sentry (Switch Installed and Wired but Unconnected)
Mechanical Fuel Pump
12 Volt Solenoid Shift Starter
20 Amp Alternator, Regulated
Engine Controls-Key Switch, Throttle and Choke Controls
PTO Face-5.625" Diameter, (4 Holes) 3/8-16 x 0.67" Deep, 7.75" Diameter, (4 Holes) 7/16-14 x 0.83" Deep
120 lbs
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2549.99
Retail Price $3088.19

Kohler CH752-3102 27 HP Supersedes CH750-3000 27 HP CH750S BASIC KEY SW PANEL

Kohler CH752-3102 27 HP CH750S BASIC KEY SW PANEL
Supersedes CH750-0003, CH750-0008, CH750-3000
1.437" x 4.453" Crankshaft
Drilled & Tapped 5/8-18 UNF
.375" Keyway
12 Volt Electric Start (Solenoid Shift Style)
20 Amp Alternator (Regulated)
Keyswitch-Engine Mounted Controls
Oil Sentry (no connected)
HD Canister Air Cleaner System
PTO Sleeve Bearing
Mechanical Fuel Pump
Stellite Exhaust Valves
Cast Iron Cylinder Sleeves
Two Barrel Carburetor
Electronic Ignition
Closed Breather System
Digital Spark Advance System
Hydraulic Valve Lifters
Smart Choke Carburetor
Large Capacity Oil Filter
Controls: Manual
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2529.99
Retail Price $3088.19

Kohler CH752-3100 27 HP Supersedes CH750-0004 30 HP CH750S BASIC WITH THRUST BEARING

Kohler CH750-3009 27 HP CH750S BASIC WITH THRUST BEARING
Supersedes CH750-0004 30 HP
1.437" x 4.453" Crankshaft
Drilled & Tapped 5/8-18 UNF
.375" Keyway
12 Volt Electric Start
Solenoid Shift Style
20 Amp Alternator Regulated
Oil Sentry (no connected)
HD Canister Air Cleaner System
PTO Sleeve Bearing
Mechanical Fuel Pump
Stellite Exhaust Valves
Cast Iron Cylinder Sleeves
Two Barrel Carburetor
Electronic Ignition
Closed Breather System
Digital Spark Advance System
Hydraulic Valve Lifters
Smart Choke Carburetor
Large Capacity Oil Filter
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2479.99
Retail Price $3001.28

Kohler CH750-3005 27 HP CH750S BASIC KEYSWITCH PANEL FLAT A C

Kohler CH750-3005 27 HP
Supersedes CH750-0005 30 HP CH750S BASIC KEYSWITCH PANEL FLAT A C
1.125" x 4" Crankshaft
Drilled & Tapped 7/16-20 UNF
.25" Keyway
12 Volt Electric Start (Solenoid Shift Style)
25 Amp Alternator (Regulated)
Oil Sentry (no connected)
Keyswitch-Engine Mounted Controls
Standard Dual Element Air Cleaner
PTO Sleeve Bearing
Mechanical Fuel Pump
Stellite Exhaust Valves
Cast Iron Cylinder Sleeves
Two Barrel Carburetor
Closed Breather System
Digital Spark Advance System
Hydraulic Valve Lifters
Controls: Manual
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2499.99
Retail Price $3015.77

Kohler CH750-3006 27 HP Supersedes CH750-0006 30 HP CH750S BASIC WITH THRUST BEARING FLAT A C

Kohler CH750-3006 27 HP
Supersedes CH750-0006 30 HP CH750S BASIC WITH THRUST BEARING FLAT A C
Overhead Valve Design
Hydraulic Valve Lifters
Digital Spark Advance System
Cast-Iron Cylinder Liners
PTO Sleeve Bearing (Side Load)
Electronic Ignition
Large Capacity Dual Element Air Cleaner
High Efficiency Grass Screen and Fan
Closed Breather System
Fixed Grass Screen Guard
25 Amp Alternator, Regulated
Stellite Exhaust Valves
Full Pressure Lubrication
Large Capacity In-Line Fuel Filter
Large Capacity Oil Filter, Dual Oil Drain
Oil Sentry (Switch Installed and Wired but Unconnected)
Variable Speed Governor
Two-Barrel Carburetor
Fuel Shutdown Solenoid
Smart-Choke Carburetor
Mechanical Fuel Pump
High Performance Spark Plugs
12 Volt Solenoid Shift Starter
With Out Engine Controls
Crankshaft-1.437" x 4.453" PTO , 0.375" Keyway, Drilled and Tapped 1.5" Deep, 5/8-18 UNF
PTO Face-5.625 in Diameter, (4 Holes) 3/8-16 x 0.67" Deep
7.75" Diameter, (4 Holes) 7/16-14 x 0.83" Deep
7" Diameter Pilot
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2419.99
Retail Price $2928.86

Kohler CH750-0026 27 HP CH750S TORO EXMARK

Kohler CH750-0026 27 HP CH750S TORO EXMARK
1-1/8" x 2.787" Crankshaft With 1/4" keyway - Drilled & Tapped 7/16-20
Supersedes CH750-0010
Overhead Valve Design
Hydraulic Valve Lifters
Digital Spark Advance System
Cast-Iron Cylinder Liners
PTO Sleeve Bearing (Side Load)
Electronic Ignition
Heavy Duty Canister Air Cleaner System
High Efficiency Grass Screen and Fan
Closed Breather System
Fixed Grass Screen Guard
Stellite Exhaust Valves
Full Pressure Lubrication
Large Capacity In-Line Fuel Filter
Easy Access Valve Cover Oil Fill-Yellow
Oil Level Dipstick-Yellow
Large Capacity Oil Filter, Dual Oil Drain
Oil Sentry (Switch Installed and Wired but Unconnected)
Variable Speed Governor
Two-Barrel Carburetor
Fuel Shutdown Solenoid
Smart-Choke Carburetor
Mechanical Fuel Pump
High Performance Spark Plugs
12 Volt Solenoid Shift Starter
20 Amp Alternator, Regulated
Engine Controls-Key Switch, Throttle and Choke Controls
Shipping Weight = 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2789.99
Retail Price $3245.87

This item is Currently Unavailable

Kohler CH1000-3000 37 HP Command Pro

Kohler CH1000-3000 37 HP
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH1000-0002, CH1000-2002 40 HP Command Pro
Horizontal Shaft V-Twin
4-cycle gasoline engine with OHV, cast iron sleeves
Displacement - 61 cubic inches or 999 cc
Crankshaft - 1.437" (1-7/16" x 4.46" with 3/8" keyway) = (36.4995 mm x 113.2 mm with 9.5 mm keyway)
Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
PTO Face 5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot
Peak Torque @ Maximum - 61.5 ft-lbs or 83.4 Nm
Compression ratio 8.8:1
Shipping Weight 145 lbs
Oil Capacity 2.9 Quarts or 2.75 liters
Full pressure flow oil filter
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3629.99
Retail Price $4773.54

Kohler CH940-3002 32.5. HP Command Pro fka CH940-2005

Kohler CH940-3002 32.5 HP
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH940-0005, CH940-2005 34 HP Command Pro
Horizontal Shaft V-Twin
4-cycle gasoline engine with OHV, cast iron sleeves
Crankshaft-1.437" (1-7/16")(36.5 mm) Diameter x 4.45" (113.2 mm) PTO Length, 0.375"
(9.5 mm) 3/8" Keyway
Drilled and Tapped 5/8-18 UNF
PTO Face 5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot
Low Profile Air Cleaner (NOTE: Pic is generic - shows Heavy Duty Air Cleaner. This engine has the Low Profile A/C. Email us if you want to see an illustration of that)
Full pressure flow oil filter
Shipping weight 170 lbs
Can buy 62 376 02-S for engine mounted controls
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Back View of CH940
NO SALES TO CALIFORNIA

Our Price $3049.99
Retail Price $4008.19

Kohler CH940-3000 32.5. HP Command Pro fka CH940-2002

Kohler CH940-3000 32.5 HP
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH940-0002, CH940-2002 34 HP Command Pro
Horizontal Shaft V-Twin
4-cycle gasoline engine with OHV, cast iron sleeves
Crankshaft-1.437" (1-7/16")(36 mm) Diameter x 4.453" (113 mm) PTO Length, 0.375"
(9.5 mm) 3/8" Keyway
Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
PTO Face 5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot
Heavy Duty Air Cleaner
Full pressure flow oil filter
Shipping weight 160 lbs
Can buy 62 376 02-S for engine mounted controls
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Back View of CH940
NO SALES TO CALIFORNIA

Our Price $3079.99
Retail Price $4028.76

Kohler CH980-3000 35 HP Command Pro

Kohler CH980-3000 35 HP
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH980-0002, CH980-2002 38 HP Command Pro
Horizontal Shaft V-Twin
4-cycle gasoline engine with OHV, cast iron sleeves
Crankshaft-1.437" x 4.453" (1-7/16" x 4.453") (=36.4995 mm x 113.2 mm) PTO
(9.5 mm) 3/8" Keyway
Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
PTO Face 5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot
Heavy Duty Air Cleaner
No Tank - No Muffler
Full pressure flow oil filter
Shipping Weight 160 lbs
Can buy 62 376 02-S for engine mounted controls
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3249.99
Retail Price $4302.19

Kohler PA-CH740-3153 25 HP Supersedes CH740-0031 27 HP Command Series Twin Cylinder

CH740-3153 25 HP
Supersedes CH740-0031 25 HP
Crankshaft: 1-1/2" x 1/2" Splined (13 splines)
12 Volt Electric Starter
15 Amp Alternator
Includes Valve Cover Fuel Pump
Shipping Weight = 129 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2649.99
Retail Price $3239.21

Kohler CH940-3001 32.5 HP Command Pro

Kohler CH940-3001 32.5 HP Command Pro
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH940-0003, CH940-2003
Horizontal Shaft V-Twin
4-cycle gasoline engine
Overhead Valve Design
Cast-iron Cylinder Liners
Electronic Ignition
Full Pressure Lubrication
Top Mounted Spin On Large Capacity Oil Filter
Heavy-Duty Canister Air Cleaner System
High-efficiency Fan and Screen
Easy Access Valve Covers
Oil Sentry
Two Barrel Carburetor
Fuel Shut Down Solenoid
Mechanical Fuel Pump
12 Volt Electric Start with 25 Amp Alternator
Two Year Limited Warranty
Remote Controls (for front mounted controls and key order kit below)
1-1/8" x x 3.35" Crankshaft with 0.25" (6.3398 mm) Keyway, Drilled and Tapped 7/16-20
OIL CAPACITY U.S. quarts (liters) 2.9 (2.75)

Accessories (Optional):
6237602S Engine Mounted Control Kit (Includes Key Switch, Panel, Oil Sentry Light, Decal, Knobs, Brackets, and Screws)
6278601S Exhaust Muffler Kit Center Outlet (Discharges straight out the back if facing the front of engine).
6278602S Exhaust Muffler Kit Starter Side Outlet (Discharges to the right if facing the front of engine).
6278603S Exhaust Muffler Kit Opposite Starter Side (Discharges to the left if facing the front of engine).
PTO Face 5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot
Shipping weight 160 lbs
Can buy 62 376 02-S aka 6237602 for engine mounted controls
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Back View of CH940
NO SALES TO CALIFORNIA

Our Price $3399.99
Retail Price $4478.64

Kohler CH940-2011 32.5 HP Command Pro Timber King

Kohler CH940-2011 32.5 HP
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH940-0011 34 HP Command Pro Timber King
Horizontal Shaft V-Twin
4-cycle gasoline engine with OHV, cast iron sleeves
Max. power @ 3600 RPM - 34 HP
Crankshaft-1.437" (1-7/16")(36 mm) Diameter x 4.453" (113 mm) PTO Length, 0.375"
(9.5 mm) 3/8" Keyway
Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
PTO Face 5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot
Heavy Duty Air Cleaner
Full pressure flow oil filter
Shipping weight 150 lbs
Comes with 6206802S aka 62 068 02-S Muffler Kit
Can buy 62 376 02-S for engine mounted controls
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.

Back View of CH940
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2579.99
Retail Price $2933.79

This item is Currently Unavailable

Kohler CH1000-3001 37 HP Command Pro

Kohler CH1000-3001 37 HP Mudboat Spec
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Supersedes CH1000-0012, CH1000-2012 40 HP Command Pro
Horizontal Shaft V-Twin
4-cycle gasoline engine with OHV, cast iron sleeves
Displacement - 61 cubic inches or 999 cc
Crankshaft: 1-1/8" x 4" PTO Length, 1.4" Keyway
Drilled and Tapped 7/16-20 UNF
Heavy Duty Air Cleaner
Center outlet muffler 62 068 06-S
Mechanical valve cover fuel pump 62 559 01-S
Electric start with 25 amp stator
Oil Cooler
Peak Torque @ Maximum - 61.5 ft-lbs or 83.4 Nm
Compression ratio 8.8:1
Shipping Weight 149 lbs
Oil Capacity 2.9 Quarts or 2.75 liters
Full pressure flow oil filter
Click the image below for a larger view of the back of the engine
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $4379.99
Retail Price $5768.45

Kohler ECH749-3148 26.5 HP Command Pro EFI fka ECH749-3007

Kohler ECH749-3148 26.5 HP Command Pro EFI
Supersedes ECH749-3010, ECH749-3007
1-1/8" x 2-3/4" Crankshaft with 1/4" Keyway, tapped 7/16-20
NO SALES TO CALIFORNIA
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
No gas tank -No muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator
Fits:
1998-2008 Exmark Lazer Z and Lazer Z Advantage Series Mowers
1998-2011 Toro Z Master and Z500 mowers

Includes:
Engine mounted canister air cleaner
Front drive shaft; mounted on flywheel
Chopper grass screen
"Plug in" wiring adapter
Full three year commercial warranty
Wiring instruction guide
TT sheet with instructions for EFI engine installation

Must buy one of the 3 muffler kits listed below:
24 786 32-S (Filter Side outlet - Most Common)
24 786 33-S (Center Side Outlet)
24 786 31-S (Starter Side Outlet)
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $2739.99
Retail Price $3289.92

Kohler ECH740-3008 25 HP Command Pro EFI

Kohler ECH740-3008 25 HP Command Pro EFI
Supersedes ECH740-3001
1-7/16" x 4.46" Crankshaft with 3/8" Keyway, tapped 5/8-18
Heavy Duty Air Cleaner
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
No gas tank -No muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator

Includes:
Engine mounted canister air cleaner
Full three year commercial warranty

Must buy one of the 3 muffler kits listed below:
24 786 32-S (Filter Side outlet - Most Common)
24 786 33-S (Center Side Outlet)
24 786 31-S (Starter Side Outlet)
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2739.99
Retail Price $3291.55

This item is Currently Unavailable

Kohler ECH749-3152 26.5 HP Command Pro EFI

Kohler ECH749-3152 26.5 HP Command Pro EFI
Supersedes ECH749-3003, ECH749-3060
1-7/16" x 4.46" Crankshaft with 3/8" Keyway, tapped 5/8-18
Heavy Duty Air Cleaner
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
No gas tank -No muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator

Includes:
Engine mounted canister air cleaner
Full three year commercial warranty

Must buy one of the 3 muffler kits listed below:
24 786 32-S (Filter Side outlet - Most Common)
24 786 33-S (Center Side Outlet)
24 786 31-S (Starter Side Outlet)
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $2799.99
Retail Price $3367.82

This item is Currently Unavailable

Kohler ECH749-3083 26.5 HP Command Pro EFI Grasshopper

Kohler ECH749-3083 26.5 HP Command Pro EFI Grasshopper
Supersedes ECH749-3033
1-1/8" x 3.35" Crankshaft with 1/4" Keyway, tapped 5/8-18
Heavy Duty Air Cleaner
Electric Start With 15 amp Alternator
Has Oil Pump & Cooler
Has Muffler 24 068 139-S aka 24068139s
Has Front Shaft 24 144 23-S aka 2414423s

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
Kohler EFI Fuel Savings Calculator

Includes:
Engine mounted canister air cleaner
Full three year commercial warranty

Must buy one of the 3 muffler kits listed below:
24 786 32-S (Filter Side outlet - Most Common)
24 786 33-S (Center Side Outlet)
24 786 31-S (Starter Side Outlet)
Shipping weight 120 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more.
Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3149.99
Retail Price $3646.78

Kohler CH1000-3002 37 HP Command Pro

Kohler CH1000-3002 37 HP Command Twin
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Displacement - 61 cubic inches or 999 cc
Crankshaft: 1-7/16" x 4.46" PTO Length, 3/8" Keyway, Drilled and Tapped 5/8-18 UNF (Part Number 62 014 113-S aka 62014113S
Low Profile Air Cleaner
NO MUFFLER - Picture is representative, the muffler is NOT included with this engine
Mechanical valve cover fuel pump 62 559 01-S
Electric start with 25 amp stator
Peak Torque @ Maximum - 61.5 ft-lbs or 83.4 Nm
Compression ratio 8.8:1
Shipping Weight 165 lbs
Oil Capacity 2.9 Quarts or 2.75 liters
Full pressure flow oil filter
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $4379.99
Retail Price $5758.51

This item is Currently Unavailable

Kohler CH1000-3003 37 HP Command Pro

Kohler CH1000-3003 37 HP Command Twin
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Displacement - 61 cubic inches or 999 cc
Crankshaft: 1-1/8" x 4.46" PTO Length, 1/4" Keyway, Drilled and Tapped 7/16-20 UNF (Part Number 62 014 111-S aka 62014111S
Low Profile Air Cleaner
NO MUFFLER - Picture is representative, the muffler is NOT included with this engine
Mechanical valve cover fuel pump 62 559 01-S
Electric start with 25 amp stator
Peak Torque @ Maximum - 61.5 ft-lbs or 83.4 Nm
Compression ratio 8.8:1
Shipping Weight 165 lbs
Oil Capacity 2.9 Quarts or 2.75 liters
Full pressure flow oil filter
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3479.99
Retail Price $4832.32

Kohler CH1000-3014 37 HP Command Pro Allen Engineering

Kohler CH1000-3014 37 HP Command Pro Allen Engineering
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
Displacement - 61 cubic inches or 999 cc
Crankshaft: 1-1/8" x 4" PTO Length, 1.4" Keyway, Drilled and Tapped 7/16-20 UNF (Part Number 62 014 108-S aka 62014108S / 62 014 122-S aka 62 014 122S)
Low Profile Air Cleaner
Includes Starter Side muffler 62 068 05-S aka 6206805S - NOTE: - Picture is representative (of a different engine)
Electric fuel pump 25 559 01-S
Electric start with 25 amp stator
Peak Torque @ Maximum - 61.5 ft-lbs or 83.4 Nm
Compression ratio 8.8:1
Shipping Weight 165 lbs
Oil Capacity 2.9 Quarts or 2.75 liters
Full pressure flow oil filter
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $4599.99
Retail Price $5835.07

Kohler Diesel KDW1003-1001E Liquid Cooled Engine

Kohler Diesel KDW1003-1001ED 3 Cylinder Liquid Cooled Engine 23.7 HP
Supersedes KDW1003-1001B, KDW1003-1001D
Mounted Air Cleaner
Muffler with guard
12 Volt Electric Start
Mounted Top Tank Radiator
Mounted Control Panel
45 amp External Alternator @ 3600 RPM
Full Pressure Lubrication with full-flow filter
Emissions Compliance Tier 4 Final/ARB Emmissions Compliance
Engine Type: Four-stroke in-line, cast iron block, aluminum cylinder head, indirect injection with injector pump on head

Exclusive Features:
Integrated fuel-injection system and overhead cam help ensure less maintenance and fewer trips to the shop
Superior balance, lower cylinder volume, and belt-driven valve train provide nearly non-existent noise and smooth operation
Cast-iron block construction ensures durability and lasting performance.
3-year limited warranty
Shipping weight = 466 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $6879.99
Retail Price $7919.99

Kohler Diesel KDW702-1001B Liquid Cooled Engine

Kohler Diesel KDW702-1001B Liquid Cooled Engine 15.4 HP
Supersedes KDW702-1001A
Mounted Air Cleaner
Muffler with guard
12 Volt Electric Start
Mounted Top Tank Radiator
Mounted Control Panel
45 amp External Alternator @ 3600 RPM
Full Pressure Lubrication with full-flow filter
Emissions Compliance Tier 4 Final/ARB Emmissions Compliance
Engine Type: Four-stroke in-line, cast iron block, aluminum cylinder head, indirect injection with injector pump on head

Exclusive Features:
Integrated fuel-injection system and overhead cam help ensure less maintenance and fewer trips to the shop
Superior balance, lower cylinder volume, and belt-driven valve train provide nearly non-existent noise and smooth operation
Cast-iron block construction ensures durability and lasting performance.
3-year limited warranty
Shipping weight = 315 lbs
This engine is shipped via truck to a business address or the nearest terminal. Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee) - NO EXCEPTION

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $6429.99
Retail Price $6949.99

Kohler ECH940-3002 35 HP Command Pro EFI LPAC

Kohler ECH940-3002 35 HP Command Pro EFI LPAC (Low Profile Air Cleaner)
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
1-7/16" x 4.46" Crankshaft with 3/8" Keyway, tapped 5/8-18 (Part Number 62 014 113-S aka 62014113S)
Electric Start With 25 amp Alternator
Has Oil Pump & Cooler
Low Profile Air Cleaner
No muffler (transfer existing)

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $3399.99
Retail Price $4104.75

This item is Currently Unavailable

Kohler ECH980-3000 38 HP Command Pro EFI Basic Keyswitch

Kohler ECH980-3000 38 HP Command Pro EFI Basic Keyswitch HDAC
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
1-7/16" x 4.46" Crankshaft with 3/8" Keyway, tapped 5/8-18 (Part Number 62 014 113-S aka 62014113S)
Electric Start With 25 amp Alternator
Has Oil Pump & Cooler
Heavy Duty Air Cleaner
No muffler (transfer existing)
Key Switch Included

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $4279.99
Retail Price $5617.91

Kohler ECH980-3011 38 HP Command Pro EFI - Walker HDAC

Kohler ECH980-3011 38 HP Command Pro EFI - Walker HDAC
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
Flush Crankshaft (Part Number 62 014 115-S aka 62014115S)
Electric Start With 25 amp Alternator
Has Oil Pump & Cooler
Heavy Duty Air Cleaner
Has muffler 62 068 18-S aka 6206818S, horizontal muffler

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

This item is currently on backorder. Email us if you want an ETA for it.

Our Price $4249.99
Retail Price $4925.12

This item is Currently Unavailable

Kohler ECH980-3013 38 HP Command Pro EFI - Yetmans

Kohler ECH980-3013 38 HP Command Pro EFI - Yetmans LPAC (Low Profile Air Cleaner)
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
1-1/8" x 4" Crankshaft with 1/4" keyway, tapped 7/16-20 (Part Number 62 014 122-S aka 62014122S)
Electric Start with 25 amp Alternator
Has Oil Pump & Cooler
Low Profile Air Cleaner (LPAC)
No Muffler (transfer existing)
Key Switch included

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency and lowering operating cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $5899.99
Retail Price $7497.31

Kohler ECH980-3042 38 HP Command Pro EFI - BRANDT AGRICULTURAL

Kohler ECH980-3042 38 HP Command Pro EFI - BRANDT AGRICULTURAL LPAC (Low Profile Air Cleaner)
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
1-1/8" x 4" Crankshaft with 1/4" Keyway, tapped 7/16-20 (Part Number 62 014 122-S aka 62014122S)
Electric Start With 25 amp Alternator
Has Oil Pump & Cooler
Low Profile Air Cleaner (Anti-Icing)
Has muffler 62 068 45-S aka 6206845S - Starter Side
Key Switch Included

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $5219.99
Retail Price $6623.01

Kohler ECH980-3002 38 HP Command Pro EFI - Basic

Kohler ECH980-3002 38 HP Command Pro EFI - Basic LPAC (Low Profile Air Cleaner)
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
1-7/16" x 4.46" Crankshaft with 3/8" keyway, tapped 5/8-18 (Part Number 62 014 113-S aka 62014113S)
Electric Start with 25 amp Alternator
Has Oil Pump & Cooler
Low Profile Air Cleaner (LPAC)
No Muffler (transfer existing)

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency and lowering operating cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $3779.99
Retail Price $4558.93

Kohler ECH980-3019 38 HP Command Pro EFI Gardner Bandit

Kohler ECH980-3019 38 HP Command Pro EFI Gardner Bandit
NO RETURNS WILL BE ACCEPTED FOR THIS ENGINE
NOTE: Picture is representative (it's of a similar engine)
1-7/16" x 4.46" Crankshaft with 3/8" Keyway, tapped 5/8-18 (Part Number 62 014 113-S aka 62014113S)
Electric Start With 25 amp Alternator
Has Oil Pump & Cooler
Heavy Duty Air Cleaner
No muffler (transfer existing)
Key Switch Included

Features
Easy Dependable Starts.
Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.
Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency
Lowest Operating Cost.
Fast payback for your investment
How Kohler EFI Fuel Works
Shipping weight 165 lbs
This engine is shipped via truck to a business address or the nearest terminal. (NO EXCEPTIONS) Residential Delivery is $95 more. Residential delivery charges, if any, must be collected after the order (The website has no way to charge the extra residential delivery fee)

To view our shipping policies, click here.
NO SALES TO CALIFORNIA

Our Price $5239.99
Retail Price $6632.74
